HARNESS SYSTEM

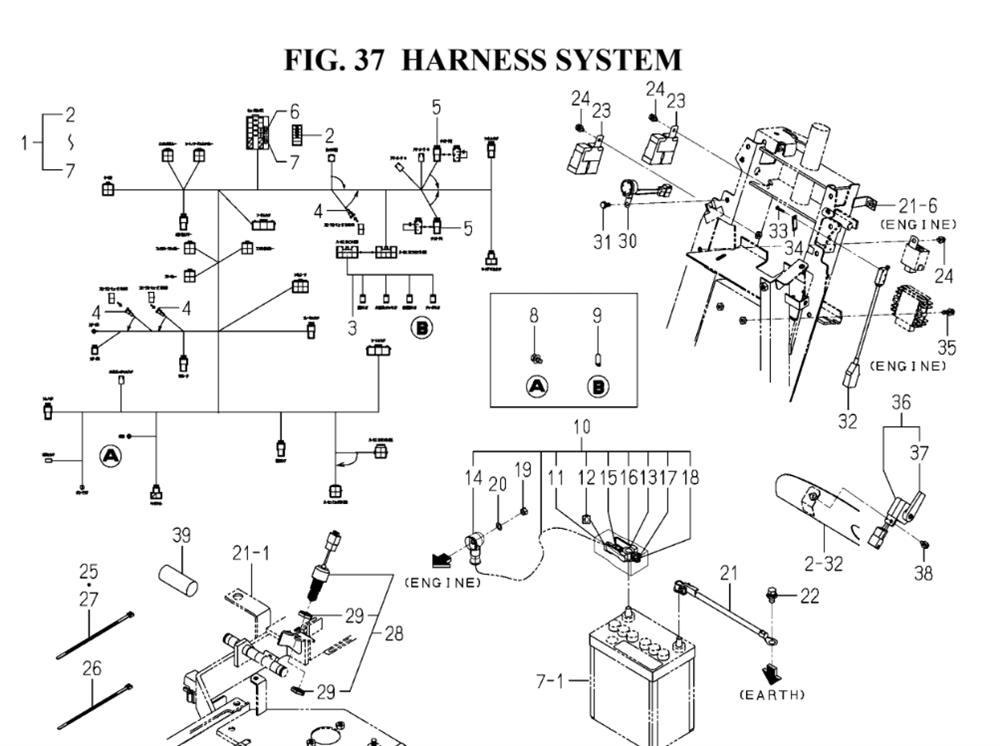

HARNESS SYSTEM assembly details for Iseki Chassis (1782-097-320-00) SXG216 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001178269050010HARNESS/MAIN ASSY£411.90 Add to
002178269050200LABEL/FUSEN/A POA
003178269051000HARNESS/MONITOR LUMPN/A POA
004165065022200FUSE/SLOWBLOW/40A (-622) (623-)£6.41 Add to
005177365221200DIODE/3A£12.88 Add to
006382126220200FUSE/BLADE/32V10A£2.70 Add to
007382424720200FUSE/BLADE/32V05A£2.45 Add to
008V21136080160BOLT,SP/M8X16£2.10 Add to
009365027021400BULB/12V3.4W£6.31 Add to
010178269025020CABLE/BATTERY ASSY£77.74 Add to
011178269025200COVER/BATTERYN/A POA
012178269025300HARNESS ASSY£30.36 Add to
013178269025400TERMINAL/BATTERY/+N/A POA
014165065029300COVER/BATTERY/STARTON/A POA
015165065029500NUTN/A POA
016165065029600INSULATOR£10.48 Add to
017156066600500BOLTN/A POA
018156066600600NUTN/A POA
019V30426000800NUT/M8 (SSM54 -100000)£1.64 Add to
020V40116000800WASHER,SP/M8 (100545-)£1.60 Add to
021172811223000CABLE/EARTH ASSY£38.30 Add to
022V21166100200BOLT,SP/M10X207T£2.86 Add to
023169065836010RELAY/4P-2 ASSY£41.90 Add to
024V21036060120BOLT,SP/M6X12£1.85 Add to
025134240200600BAND,WIRE/250 (SXG19 515-) (SXG22 102-) (-622) (623-)£7.43 Add to
026137640200300BAND,WIRE/140 (SXG19 515-) (SXG22 102-) (-622) (623-)£5.34 Add to
027134240200600BAND,WIRE/250 (SXG19 515-) (SXG22 102-) (-622) (623-)£7.43 Add to
028177265425010SWITCH/PUSH ASSY£17.50 Add to
029177265425100NUT£4.78 Add to
030251566521000BUZZER£35.04 Add to
031V21036060120BOLT,SP/M6X12£1.85 Add to
032159362352000SWITCH,MERIT (623-) (-622)£53.00 Add to
033161412900300SCREW/M03X20 (-622) (623-)£1.53 Add to
034364249600710PLATE,SWITCH (-622) (623-)£4.85 Add to
035V21036060250BOLT,SP/M6X25£1.83 Add to
036171668033000SWITCH/LEVER ASSY (-100531)£93.10 Add to
037171668022200ARM£6.13 Add to
038V21036060160BOLT,SP/M6X16 (-104713) (-236)£1.92 Add to
039178269005110TUBE/80N/A POA
