ELECTRIC-EQUIPMENT

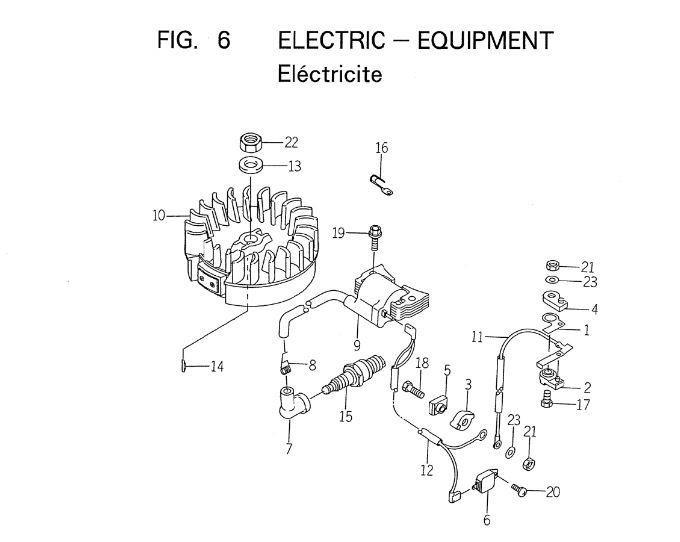

ELECTRIC-EQUIPMENT assembly details for Iseki SW519 MOWER (2503-098-100-10) ENGINE FC150V (EB05) SW 519 & 521 & 621 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0015131832475PLATEN/A POA
0025140242182COVERN/A POA
0035140242183COVERN/A POA
0045160732123INSULATORN/A POA
0055160732124INSULATORN/A POA
0065211192139IGNITER (B50812-)N/A POA
0075211302066CAP-SPARK PLUGN/A POA
0085211692004TERMINALN/A POA
0095211712176COIL-ASSY-IGNITION (B50812-)N/A POA
0105211942290FLYWHEEL-COMPN/A POA
0115260112191WIRE-LEADN/A POA
0125260112279WIRE-LEAD (C13448-)N/A POA
0135920222102WASHERN/A POA
0145920382077KEYN/A POA
0155920702087PLUG-SPARK, BP6ES (NGK)N/A POA
0165921702064CLAMPN/A POA
0175112B0516BOLT-UPSETN/A POA
0185112B0522BOLT-UPSET (-017986)N/A POA
0195130G0625BOLT-FLANGEDN/A POA
0205241B0412SCREW-PAN-WPN/A POA
0215311B0500NUT-HEX (-017986)N/A POA
0225314G1400NUT-HEX-FINEN/A POA
0235410B0500W-PLAIN-S (-017986)N/A POA
