CUTTING (6) LIFT UP & DOWN 1

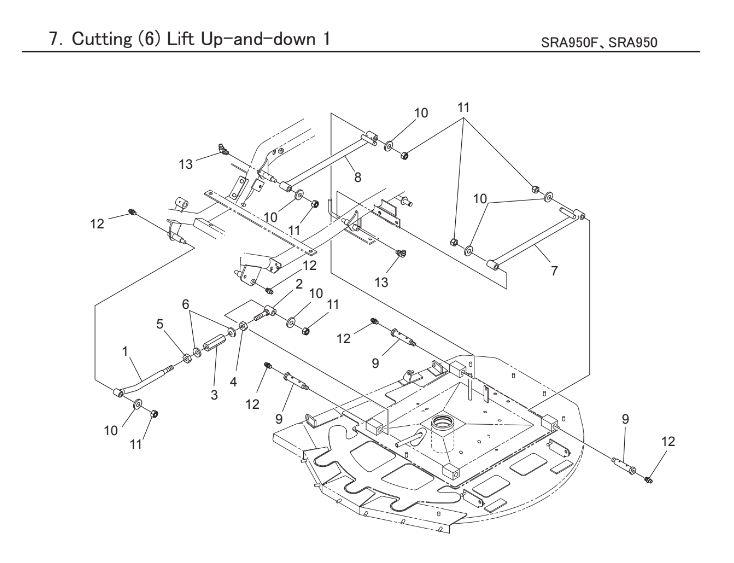

CUTTING (6) LIFT UP & DOWN 1 assembly details for Iseki SRA950F-950 RIDE ON BRUSHCUTTER SRA 800 - 950F model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
00106757502000ARM (CUTTING HEIGHT FF/F) COMPN/A POA
00206707502200ARM (CUTTING HEIGHT FR) COMPN/A POA
00306707500120ADJUST NUT (M16X1.5)N/A POA
004V3332600160NUT (NARROW SPIRAL) M16X1.5N/A POA
00506707500130NUT (RIGHT M16X1.5)N/A POA
00606707500160SPRING (2H)N/A POA
00706727582000ARM (CUTTING HEIGHT/REAR/LS) COMPN/A POA
00806727572100ARM (CUTTING HEIGHT/REAR/RS) COMPN/A POA
00906707500110BOLT (M10/16X83)N/A POA
010V4112600100WASHER 10N/A POA
01104122040040U-NUT (M10)N/A POA
012V7674000000GREASE NIPPLE A-M6FN/A POA
01304516120240GREASE NIPPLE (B-M6F)N/A POA
