WHEEL(GAUGE)SYSTEM

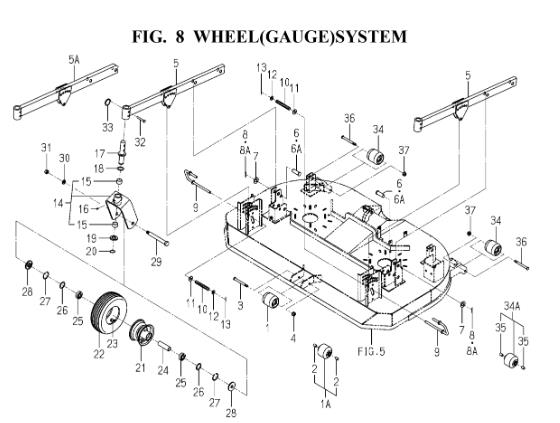

WHEEL(GAUGE)SYSTEM assembly details for Iseki SCMA60-SF450E4 (8675-097-100-10) SF450 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001859550100120WHEEL/GAUGE/FRONT£16.74 Add to
001A867550128000ROLLER ASSY (785-)£62.31 Add to
002156051101510BUSH/12X14X20 (785-)N/A POA
003866350105100PIN/12X117 (SMM54 1885-)£9.90 Add to
004V36026001200NUT/WASHER/M12£1.82 Add to
005867550121000ARM/GAUGE COMP (-384)£240.40 Add to
005A867550121010ARM/GAUGE COMP (385-)£154.18 Add to
006867550100100PIN/20X54£6.62 Add to
006A867550100110PIN/20X56£10.31 Add to
007V41126002000WASHER,PL/M20£2.73 Add to
008V50016300300PIN,SPLIT/3X30 (-511)£1.64 Add to
008AV50016400300PIN,SPLIT/4X30 (512-)£1.51 Add to
009867550123000LEVEL/LOCK COMPN/A POA
010866415500200SPRING/HC120£4.43 Add to
011142734100300WASHER/13X32X3N/A POA
012V41126001200WASHER,PL/M12 (SSM54 100001-)£2.64 Add to
014865450120002FORK/WHEEL ASSY£228.88 Add to
015865450120100BUSH/30X34X20£17.25 Add to
016V76015000000NIPPLE, GREASE£3.96 Add to
017867550127000PIN/GAUGE COMP£48.03 Add to
018142743200500COLLAR,THRUST£9.94 Add to
019367070101000WASHER/30X50X05£12.02 Add to
020V70414003000RING,SNAP/30 C (SXG19 -6253) (SXG22 -2066)£2.30 Add to
021865450134020RIM/GAUGEWHEEL£120.73 Add to
022865450132110TIRE/11X4.00-5£101.42 Add to
023865450132200VALVE£37.13 Add to
024865450100510COLLAR/22X27X93£8.85 Add to
025V60014062040BEARING,RB/6204RS£16.94 Add to
026865450100800WASHER/34X47X01£3.61 Add to
027V70514004700RING,SNAP/47 C£2.98 Add to
028865450133010COLLAR/SEAL COMP£19.20 Add to
029865450100200PIN/20X175£59.89 Add to
030V40116001600WASHER,SP/M16£1.64 Add to
031V30446001600NUT/M16£2.89 Add to
032867350100200PIN/10X64£4.85 Add to
033865450100610SPRING/CLIP£6.44 Add to
034859550100120WHEEL/GAUGE/FRONT£16.74 Add to
034A867550128000ROLLER ASSY (785-)£62.31 Add to
035156051101510BUSH/12X14X20 (785-)N/A POA
036866350105100PIN/12X117 (SMM54 1885-)£9.90 Add to
037V36026001200NUT/WASHER/M12£1.82 Add to
