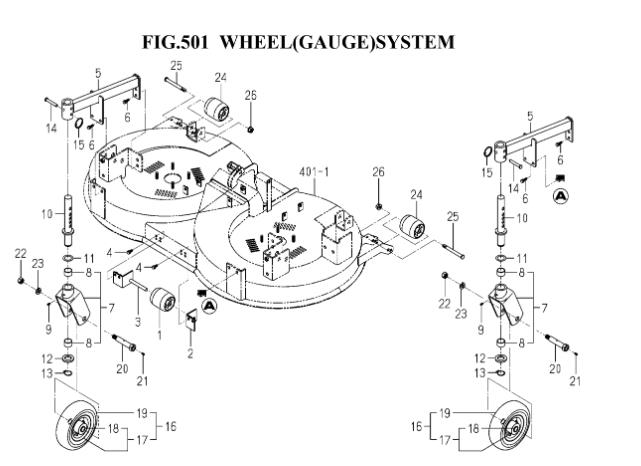

WHEEL(GAUGE)SYSTEM

WHEEL(GAUGE)SYSTEM assembly details for Iseki SCMA54SF450E4 (8668-095-100-00) SF450 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001859550100120WHEEL/GAUGE/FRONT£16.74 Add to
002866350151000STAY/GAUGE/LH COMP£11.70 Add to
003866350152000STAY/GAUGE/RH COMP£20.04 Add to
004V21126080200BOLT,S/M8X20£2.09 Add to
005866850151000ARM/GAUGE/450 COMP£160.06 Add to
006V21126100250BOLT,S/M10X25£2.12 Add to
007859550131002FORK/WHEEL ASSY£175.75 Add to
008865450120100BUSH/30X34X20£17.25 Add to
009V76015000000NIPPLE, GREASE£3.96 Add to
010859550128003PIN/GAUGE COMPN/A POA
011142743200500COLLAR,THRUST£9.94 Add to
012367070101000WASHER/30X50X05£12.02 Add to
013V70414003000RING,SNAP/30 C (SXG19 -6253) (SXG22 -2066)£2.30 Add to
014867350100200PIN/10X64£4.85 Add to
015865450100610SPRING/CLIP£6.44 Add to
016859550132010WHEEL/GAUGE ASSY£207.33 Add to
017859550135010WHELL ASSY£120.20 Add to
018859550135110RBB£18.76 Add to
019859550136010TIRE/8X3.00-4 ASSY£96.40 Add to
020859550100700PIN/20X112£57.50 Add to
021V76015000000NIPPLE, GREASE£3.96 Add to
022V30446001600NUT/M16N/A POA
023V40116001600WASHER,SP/M16£1.64 Add to
024859550100120WHEEL/GAUGE/FRONT£16.74 Add to
025866350105100PIN/12X117 (SMM54 1885-)£9.90 Add to
026V36026001200NUT/WASHER/M12£1.82 Add to
