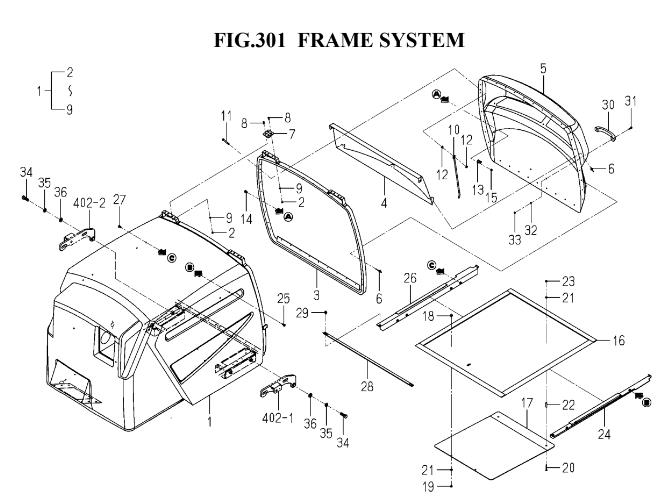

FRAME SYSTEM

FRAME SYSTEM assembly details for Iseki SBC1300FHE4 (8668-095-100-00) SF450 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	867630120000	CONTAINER ASSY	N/A	POA
002	152261600300	NUT,U/M6	£1.70	Add to
003	867630123000	FRAME/DOOR/B COMP	£1,084.05	Add to
004	867630100400	PLATE/DOOR/UPPER	£343.98	Add to
005	867630101200	CONTAINER/DOOR	N/A	POA
006	867630101500	RIVET/POP	£2.07	Add to
007	867630101600	HINGE	£112.77	Add to
008	V11270600200	SCREW/FLAT	N/A	POA
009	V41126000600	WASHER,PL/M6 (SXG19 7186-) (SXG22 2321-) (100464-)	£1.64	Add to
010	867630100800	BAR/STOPPER	£19.30	Add to
011	W20126080500	BOLT/M 8X50	N/A	POA
012	171931200100	U-NUT (100136-)	£2.49	Add to
013	361063100200	HANGER,SUPPORT	£9.20	Add to
014	382423202100	SCREW/TRUSS/M08X20	£1.50	Add to
015	171931200100	U-NUT (100136-)	£2.49	Add to
016	867630151000	NET/PARTITION COMP	£508.37	Add to
017	867630100700	PLATE/UPPER	N/A	POA
018	V21136080160	BOLT,SP/M8X16	£2.10	Add to
019	171931200100	U-NUT (100136-)	£2.49	Add to
020	V20026060500	BOLT/M6X50	N/A	POA
021	V41126000800	WASHER, PL/M8	£1.64	Add to
022	163624121500	COLLAR/07X11X36	£3.73	Add to
023	111860600210	U-NUT	£2.21	Add to
024	867630152000	PLATE/LH COMP	N/A	POA
025	382423202100	SCREW/TRUSS/M08X20	£1.50	Add to
026	867630153000	PLATE/RH COMP	N/A	POA
027	382423202100	SCREW/TRUSS/M08X20	£1.50	Add to
028	867630154000	NET/FRONT COMP	£111.37	Add to
029	V21136080160	BOLT,SP/M8X16	£2.10	Add to
030	367023600300	GRIP	£9.93	Add to
031	V12036600250	SCREW,SP/M6X25	N/A	POA
032	V41126000600	WASHER,PL/M6 (SXG19 7186-) (SXG22 2321-) (100464-)	£1.64	Add to
033	152261600300	NUT,U/M6	£1.70	Add to
034	V20136160450	BOLT/M16X45/7T	N/A	POA
035	V40116001600	WASHER,SP/M16	£1.64	Add to
036	V41126001600	WASHER,PL/M16	£1.67	Add to
