CYLINDER SYSTEM

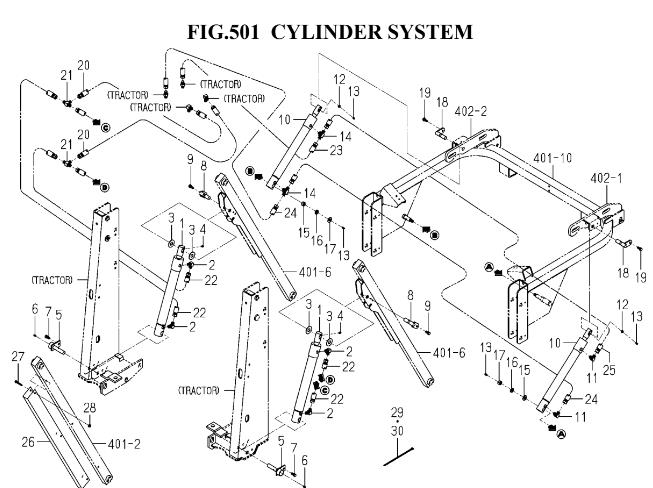

CYLINDER SYSTEM assembly details for Iseki SBC1300FHE4 (8668-095-100-00) SF450 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	867650121000	CYLINDER/LIFT ASSY	£503.56	Add to
002	376818502210	ADAPTER/90DEG/PUMP(-100638)	£15.93	Add to
003	867650100300	WASHER/17X40X02	£5.37	Add to
004	V76015000000	NIPPLE, GREASE	£3.96	Add to
005	867650124000	PIN/16X81 COMP	£41.23	Add to
006	V76015000000	NIPPLE, GREASE	£3.96	Add to
007	V21126080200	BOLT,S/M8X20	£2.09	Add to
008	867650125000	PIN/16X55 COMP	£23.10	Add to
009	V21126080200	BOLT,S/M8X20	£2.09	Add to
010	867650131000	CYLINDER/DUMP ASSY	N/A	POA
011	376818502210	ADAPTER/90DEG/PUMP(-100638)	£15.93	Add to
012	V40116000600	WASHER,SP/M6 (SXG19 -7185) (SXG22 -2320) (100464-)	£1.64	Add to
013	V76015000000	NIPPLE, GREASE	£3.96	Add to
014	867650100100	ADAPTER/T/R1/4	£33.68	Add to
015	V41126001200	WASHER,PL/M12 (SSM54 100001-)	£2.64	Add to
016	V40116001200	WASHER,SP/M12 (SSM60 -100000)	£1.64	Add to
017	V30426001200	NUT/M12 (SSM60 -100000)	£3.02	Add to
018	867650125000	PIN/16X55 COMP	£23.10	Add to
019	V21126080200	BOLT,S/M8X20	£2.09	Add to
020	867650144000	HOSE/HYDRO/700 ASSY	N/A	POA
021	866455500300	ADAPTER/T	£20.58	Add to
022	867650143000	HOSE/HYDRO/1050 ASSY	£127.19	Add to
023	867650141000	HOSE/HYDRO/2325 ASSY	N/A	POA
024	867650127000	HOSE/HYDRO/1925 ASSY	£183.76	Add to
025	867650142000	HOSE/HYDRO/1300 ASSY	£152.09	Add to
026	867650100700	COVER/HOSE	£68.44	Add to
027	V20026060400	BOLT/M6X40	£1.47	Add to
028	V36026000600	NUT/WASHER/M6	£1.47	Add to
029	137640200300	BAND,WIRE/140 (SXG19 515-) (SXG22 102-) (-622) (623-)	£5.34	Add to
030	134240200600	BAND,WIRE/250 (SXG19 515-) (SXG22 102-) (-622) (623-)	£7.43	Add to
