INJECTION PUMP

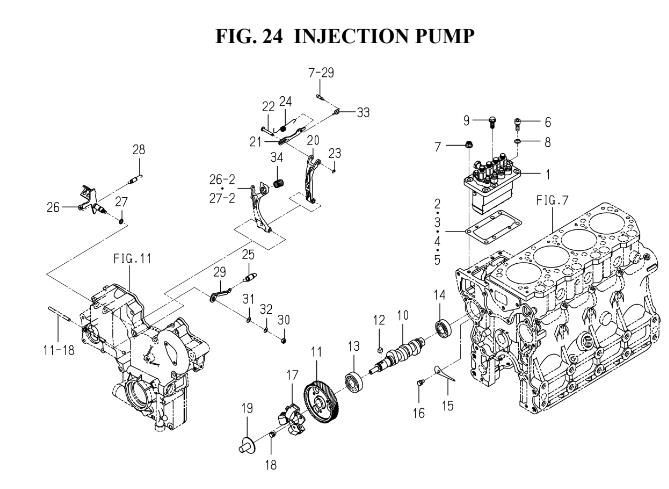

INJECTION PUMP assembly details for Iseki ENGINE E4CG-VG...SF450 (6008-097-320-10) SF450 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001621560011920INJECTIONPUMP ASSY£1,791.13 Add to
002621975202300SHIM/INJECTION P/0.3£3.65 Add to
003621975202200SHIM/INJECTION P/0.2£4.08 Add to
004621975202400SHIM/INJECTION P/0.4£4.85 Add to
005621975202500SHIM/INJECTION P/0.5£3.65 Add to
006V22054080200SCREW,SOCKET/M8X20N/A POA
007381740100100NUT/M08 (206026-)£1.53 Add to
008V40116000800WASHER,SP/M8 (100545-)£1.60 Add to
009V23136080200FLANGEBOLT/M8X20£1.66 Add to
010621562101230CAMSHAFT/INJECTION PN/A POA
011621252400630GEAR/INJECTIONPUMP£144.56 Add to
012620973000500KEY/07X05X09 (20508)£4.04 Add to
013V60011062040BEARING,RB/6204£14.87 Add to
014172920200100BEARING/BALL (211435-)N/A POA
015621253500900PLATE/THRUST/INJPUMPN/A POA
016V21056060120BOLT, S/M6X12/7T (20508)£1.53 Add to
017621552000710FLYWEIGHT ASSYN/A POA
018620903004300BOLT/M6X10N/A POA
019621552600400THRUSTPIECE£41.10 Add to
020621554100110ARM/FLOATING COMP£32.58 Add to
021621554301000LINK/CONTROL£4.31 Add to
022621554200600PIN,CONTROL£9.12 Add to
023V71014000400RING, SNAP/4 E£1.43 Add to
024621554903110SPRING/SETTING£12.51 Add to
025621553101900SPRING/GOVERNOR£3.51 Add to
026621554104000LEVER/CONTROL COMPN/A POA
027V72010190080O-RING/1A,P8£3.06 Add to
028620958000210SPRING,RETURN£3.37 Add to
029621554900710ARM/CONTROL (-180997)N/A POA
030V30126000600NUT/M6£1.64 Add to
031V41126000600WASHER,PL/M6 (SXG19 7186-) (SXG22 2321-) (100464-)£1.64 Add to
032V40116000600WASHER,SP/M6 (SXG19 -7185) (SXG22 -2320) (100464-)£1.64 Add to
033621554903900SPRING/STARTING£4.12 Add to
034621553700300SPRING/IDLE£2.24 Add to
