PIPING(CONTROL)SYSTEM(3/3)

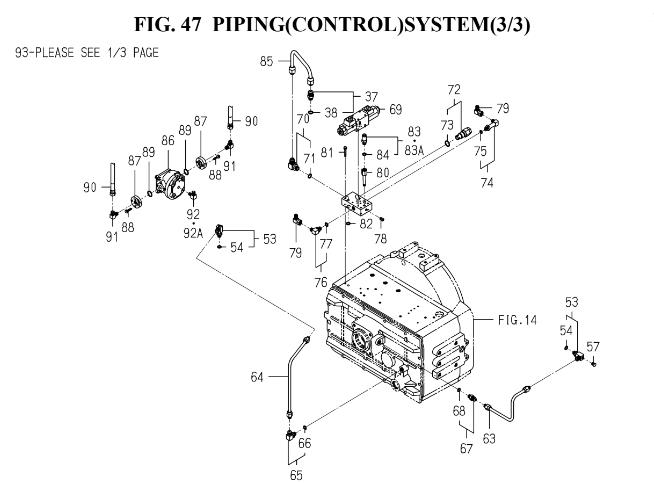

PIPING(CONTROL)SYSTEM(3/3) assembly details for Iseki CHASSIS PC SF4 (1809-097-100-10) SF450 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
055177050827000ADAPTER/G1/4XM1 ASSYN/A POA
056V72011240110O-RING/1B,P11 (SXG19 -4766) (SXG22 -1600)£3.64 Add to
057V78216000020PLUG/SCREWN/A POA
058V21126080300BOLT,S/M8X30£1.85 Add to
059V72011190070O-RING/1B,P7N/A POA
060V2013608060BBOLT/M8X60/7T,SEALN/A POA
061V40116000800WASHER,SP/M8 (100545-)£1.60 Add to
062180950934000PIPE/HI COMPN/A POA
063180950935000PIPE/LOW COMPN/A POA
064180950936000PIPE/PTO COMPN/A POA
065165050928000ADAPTER/PF1/4 ASSY£8.86 Add to
066V72011240110O-RING/1B,P11 (SXG19 -4766) (SXG22 -1600)£3.64 Add to
067165650931010ADAPTER/L/PF1/4 ASSY (SXG19 -4766) (SXG22 -1600)£26.02 Add to
068V72011240110O-RING/1B,P11 (SXG19 -4766) (SXG22 -1600)£3.64 Add to
069180950937000VALVE/FAN ASSY£606.46 Add to
070165050931000ADAPTER/L/PF3/8 ASSY£20.78 Add to
071V72011240140O-RING/1B,P14 (-592) (593-)N/A POA
072K25003500010VALVE/RELIEF ASSYN/A POA
073V72011240200O-RING/1B,P20N/A POA
074P11321133000ELBOW/90DEG/L ASSYN/A POA
075V72011240110O-RING/1B,P11 (SXG19 -4766) (SXG22 -1600)£3.64 Add to
076170540823000ADAPTER/L/G1/4 ASSY£31.01 Add to
077V72011240110O-RING/1B,P11 (SXG19 -4766) (SXG22 -1600)£3.64 Add to
078V78014000020PLUG/SCREWN/A POA
079180950952000ADAPTER/G1/4N/A POA
080180950900600ADAPTER/PT1/8N/A POA
081180950900800BOLT/S/SEAL/7N/A POA
082V72011240120O-RING/1B,P12N/A POA
083168240823010ADAPTER/PF1/4 ASSYN/A POA
083A177150929000ADAPTER/G1/4 ASSYN/A POA
084V72011240110O-RING/1B,P11 (SXG19 -4766) (SXG22 -1600)£3.64 Add to
085180950951000PIPE/FAN COMP£39.96 Add to
086180950940000MOTOR/FAN ASSY£771.31 Add to
087177150800100FLANGE/PUMPN/A POA
088V21056060250BOLT,S/MX25/7T£1.49 Add to
089V72011240200O-RING/1B,P20N/A POA
090180950945000HOSE/FV-M ASSY£47.55 Add to
091376818502210ADAPTER/90DEG/PUMP(-100638)£15.93 Add to
092167550600200ADAPTER/L/PT1/8N/A POA
092A176450600400ADAPTER/L/R1/8-G1/4N/A POA
093180950900700PLATEN/A POA
