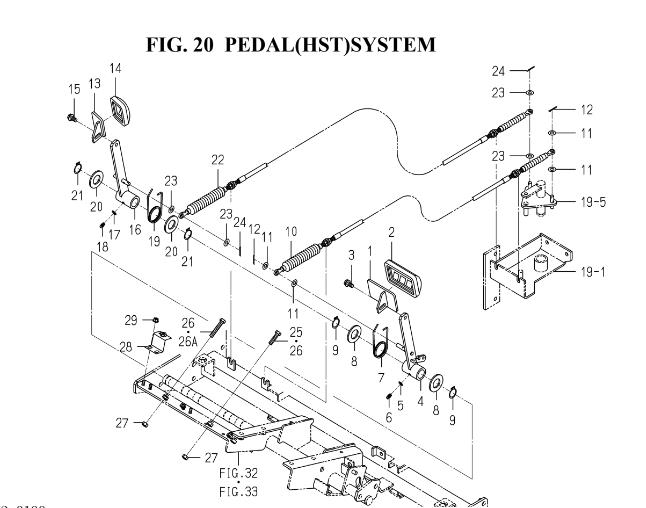

PEDAL(HST)SYSTEM

PEDAL(HST)SYSTEM assembly details for Iseki CHASSIS PC SF4 (1809-097-100-10) SF450 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001168927226000PEDAL/HST/F COMPN/A POA
002174764006700PAD/HST£16.18 Add to
003V21136080160BOLT,SP/M8X16£2.10 Add to
004180927221000ARM/PEDAL/F COMPN/A POA
005V41126000600WASHER,PL/M6 (SXG19 7186-) (SXG22 2321-) (100464-)£1.64 Add to
006V76015000000NIPPLE, GREASE£3.96 Add to
007180927200100SPRING/HT038£14.26 Add to
008V41126002200WASHER,PL/M22£2.23 Add to
009V70414002200RING,SNAP/22 CN/A POA
010180927223000CABLE/HST/F ASSY£48.64 Add to
011V41126000800WASHER, PL/M8£1.64 Add to
012V50016250200PIN,SPLIT/2.5X20 (SXG19 9442-) (SXG22 3149-)£1.64 Add to
013168927224000PEDAL/HST/RH COMP£114.36 Add to
014177427207100PAD/HST/R£12.25 Add to
015V21136080160BOLT,SP/M8X16£2.10 Add to
016180927222000ARM/PEDAL/R COMPN/A POA
017V41126000600WASHER,PL/M6 (SXG19 7186-) (SXG22 2321-) (100464-)£1.64 Add to
018V76015000000NIPPLE, GREASE£3.96 Add to
019180927200100SPRING/HT038£14.26 Add to
020V41126002200WASHER,PL/M22£2.23 Add to
021V70414002200RING,SNAP/22 CN/A POA
022180927223000CABLE/HST/F ASSY£48.64 Add to
023V41126000800WASHER, PL/M8£1.64 Add to
024V50016250200PIN,SPLIT/2.5X20 (SXG19 9442-) (SXG22 3149-)£1.64 Add to
025V20136080300BOLT/M8X30/7TN/A POA
026V20136080350BOLT/M8X35/7TN/A POA
026AV20136080400BOLT/M8X40/7TN/A POA
027V30446000800NUT/M8/7T£3.48 Add to
028180927225010STAY/SWITCH COMP£6.32 Add to
029V36026000600NUT/WASHER/M6£1.47 Add to
