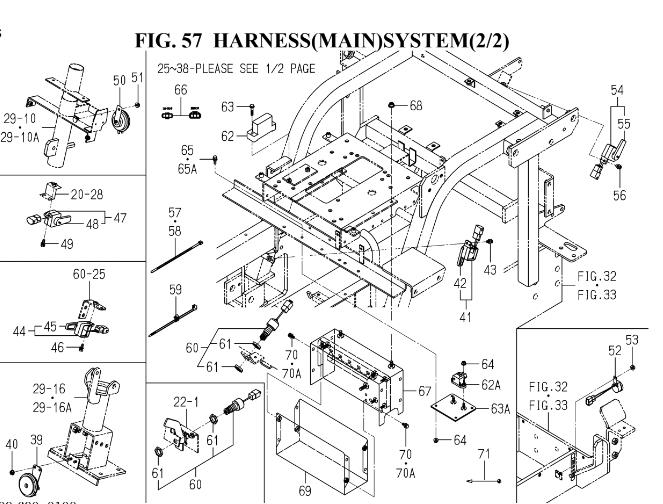

HARNESS(MAIN)SYSTEM(2/2)

HARNESS(MAIN)SYSTEM(2/2) assembly details for Iseki CHASSIS PC SF4 (1809-097-100-10) SF450 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
025V12036500160SCREW,SP/M5X16N/A POA
026172568022010SWITCH/LIMIT ASSY£29.12 Add to
027384327500100BOLTN/A POA
028364249600710PLATE,SWITCH (-622) (623-)£4.85 Add to
029151862132000SWITCH,STOP£82.70 Add to
030143262100610NUT,LOCK£6.12 Add to
031180065240000RELAY/5P ASSY£6.10 Add to
032180065240000RELAY/5P ASSY£6.10 Add to
033180065240000RELAY/5P ASSY£6.10 Add to
034180065240000RELAY/5P ASSY£6.10 Add to
035180065240000RELAY/5P ASSY£6.10 Add to
036177365222000RELAY/CONTROL/ENGINE (100172-)£69.31 Add to
037173968122010RELAY/FLASHER/EECN/A POA
038V36026000600NUT/WASHER/M6£1.47 Add to
039174068053020HORN ASSY (100136-)£29.68 Add to
040V36026000600NUT/WASHER/M6£1.47 Add to
041171668033000SWITCH/LEVER ASSY (-100531)£93.10 Add to
042171668022200ARM£6.13 Add to
043V21036060160BOLT,SP/M6X16 (-104713) (-236)£1.92 Add to
044171668033000SWITCH/LEVER ASSY (-100531)£93.10 Add to
045171668022200ARM£6.13 Add to
046V21036060160BOLT,SP/M6X16 (-104713) (-236)£1.92 Add to
047171668033000SWITCH/LEVER ASSY (-100531)£93.10 Add to
048171668022200ARM£6.13 Add to
049V21036060160BOLT,SP/M6X16 (-104713) (-236)£1.92 Add to
050169065032000HORN ASSY (SXG19 1552-) (SXG22 590-)£49.80 Add to
051V36026000600NUT/WASHER/M6£1.47 Add to
052251566521000BUZZER£35.04 Add to
053V36026000600NUT/WASHER/M6£1.47 Add to
054171668033000SWITCH/LEVER ASSY (-100531)£93.10 Add to
055171668022200ARM£6.13 Add to
056V21036060160BOLT,SP/M6X16 (-104713) (-236)£1.92 Add to
057134240200600BAND,WIRE/250 (SXG19 515-) (SXG22 102-) (-622) (623-)£7.43 Add to
058137640200300BAND,WIRE/140 (SXG19 515-) (SXG22 102-) (-622) (623-)£5.34 Add to
059156066600400BAND£1.77 Add to
060177265425010SWITCH/PUSH ASSY£17.50 Add to
061177265425100NUT£4.78 Add to
062169050524000SENSOR/SLOPE ASSY£130.78 Add to
063V23036060300FLANGEBOLT/M6X30 (SXG19 9114-) (SXG22 3050-)N/A POA
063A180969041000STAY/SENSOR COMPN/A POA
064V36026000600NUT/WASHER/M6£1.47 Add to
065V23036060160FLANGEBOLT/M6X16£1.46 Add to
065AV21036060200BOLT,SP/M6X20 (-622) (623-)£1.76 Add to
066180969030000HARNESS/SENSOR ASSYN/A POA
067180969025010STAY/CONTROLLER COMPN/A POA
068V36226000800NUT/WASHER/M8£1.77 Add to
069180969026000CPVER/CONTROLLER COMPN/A POA
070V23036060120FLANGEBOLT/M6X12 (226314-)£1.59 Add to
070AV21036060160BOLT,SP/M6X16 (-104713) (-236)£1.92 Add to
071160062400410HARNESS/OILPRESSURE£2.78 Add to
