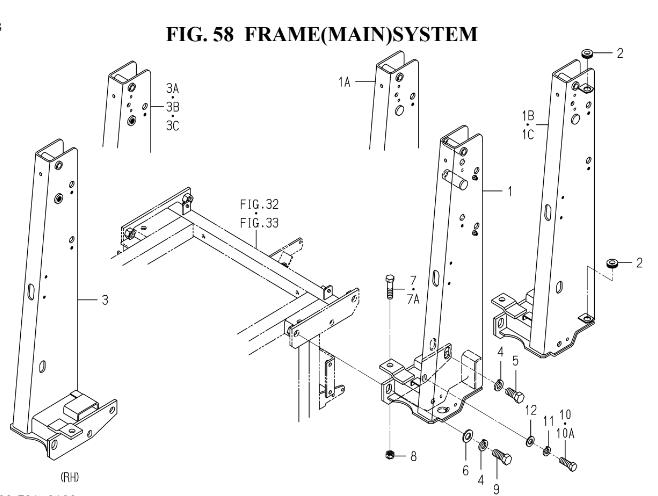

FRAME(MAIN)SYSTEM

FRAME(MAIN)SYSTEM assembly details for Iseki CHASSIS PC SF4 (1809-097-100-10) SF450 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001180970121020FRAME/MAIN/LH COMPN/A POA
001A180970121030FRAME/MAIN/LH COMPN/A POA
001B180970121040FRAME/MAIN/LH COMPN/A POA
001C180970121050FRAME/MAIN/LH COMPN/A POA
002157561600500GROMMET/17X21X3£3.23 Add to
003180970123020FRAME/MAIN/RH COMPN/A POA
003A180970123030FRAME/MAIN/RH COMPN/A POA
003B180970123040FRAME/MAIN/RH COMPN/A POA
003C180970123050FRAME/MAIN/RH COMPN/A POA
004V40116002000WASHER,SP/M20£1.78 Add to
005V20136200400BOLT/M20X40/7TN/A POA
006V41126002000WASHER,PL/M20£2.73 Add to
007V20336160650BOLT/M16X65/7T,P=1.5N/A POA
007A180970100200BOLT/M16X65N/A POA
008V33526001600NUT/M16,P=1.5£2.09 Add to
009V20136200450BOLT/M20X45/7TN/A POA
010V20136160450BOLT/M16X45/7TN/A POA
010AV20336160450BOLT/M16X45/7T,P=1.5N/A POA
011V40116001600WASHER,SP/M16£1.64 Add to
012V41126001600WASHER,PL/M16£1.67 Add to
