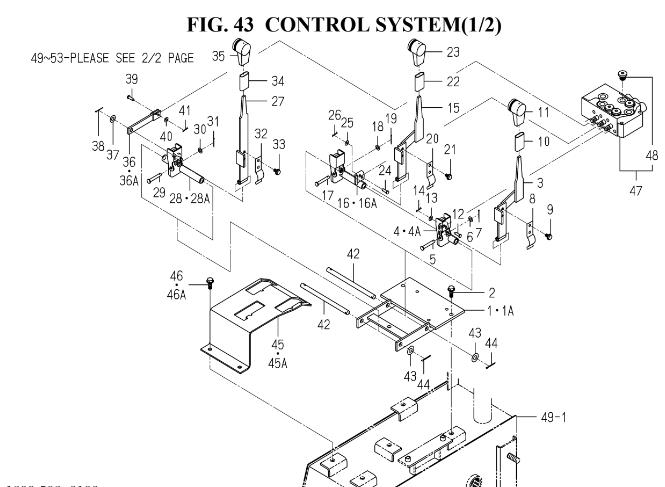

CONTROL SYSTEM(1/2)

CONTROL SYSTEM(1/2) assembly details for Iseki CHASSIS PC SF4 (1809-097-100-10) SF450 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001180950321000BRACKET/VALVE COMPN/A POA
001A180950321010BRACKET/VALVE COMPN/A POA
002V23136080200FLANGEBOLT/M8X20£1.66 Add to
003180950326010LEVER/COLLECTOR COMPN/A POA
004180950323000ARM/LIFT/COLLECTORN/A POA
004A180950323010ARM/LIFT/COLLECTORN/A POA
005214558600200PIN/6X42£7.17 Add to
006V41126000600WASHER,PL/M6 (SXG19 7186-) (SXG22 2321-) (100464-)£1.64 Add to
007V50016200200PIN,SPLIT/2X20 (SXG19 -9441) (SXG22 -3148)N/A POA
008180950300300SPRING/PLATE£4.94 Add to
009V23036060100FLANGEBOLT/M6X10£1.43 Add to
010171626407100INSULATOR/LEVER/PTO£4.98 Add to
011144430700700GRIP£14.54 Add to
012177150300300PIN/05X17N/A POA
013V41126000500WASHER,PL/M5N/A POA
014V56016000500PIN/SNAPN/A POA
015180950326010LEVER/COLLECTOR COMPN/A POA
016180950324000ARM/DUMP/COLLECTORN/A POA
016A180950324010ARM/DUMP/COLLECTORN/A POA
017214558600200PIN/6X42£7.17 Add to
018V41126000600WASHER,PL/M6 (SXG19 7186-) (SXG22 2321-) (100464-)£1.64 Add to
019V50016200200PIN,SPLIT/2X20 (SXG19 -9441) (SXG22 -3148)N/A POA
020180950300300SPRING/PLATE£4.94 Add to
021V23036060100FLANGEBOLT/M6X10£1.43 Add to
022171626407100INSULATOR/LEVER/PTO£4.98 Add to
023144430700700GRIP£14.54 Add to
024177150300300PIN/05X17N/A POA
025V41126000500WASHER,PL/M5N/A POA
026V56016000500PIN/SNAPN/A POA
027180950322000LEVER/LIFT COMPN/A POA
028180950325000ARM/LIFT COMPN/A POA
028A180950325010ARM/LIFT COMPN/A POA
029214558600200PIN/6X42£7.17 Add to
030V41126000600WASHER,PL/M6 (SXG19 7186-) (SXG22 2321-) (100464-)£1.64 Add to
031V50016200200PIN,SPLIT/2X20 (SXG19 -9441) (SXG22 -3148)N/A POA
032180950300300SPRING/PLATE£4.94 Add to
033V23036060100FLANGEBOLT/M6X10£1.43 Add to
034171626407100INSULATOR/LEVER/PTO£4.98 Add to
035144430700700GRIP£14.54 Add to
036180950327000PLATE/SPOOL COMPN/A POA
036A180950327010PLATE/SPOOL COMPN/A POA
037V41126000800WASHER, PL/M8£1.64 Add to
038V50016200200PIN,SPLIT/2X20 (SXG19 -9441) (SXG22 -3148)N/A POA
039177150300300PIN/05X17N/A POA
040V41126000500WASHER,PL/M5N/A POA
041V56016000500PIN/SNAPN/A POA
042180950300100PIN/10X148N/A POA
043V41126001000WASHER,PL/M10 (SXG19 -6253) (SXG22 -2066) (100545-)£1.52 Add to
044V50016250250PIN,SPLIT/2.5X25N/A POA
045180950300210PLATE/GUIDE/LEVERN/A POA
045A180950300220PLATE/GUIDE/LEVER£72.36 Add to
046V23136080200FLANGEBOLT/M8X20£1.66 Add to
046AV21166080200BOLT,SP/M8X20/7T£2.69 Add to
047172850828010VALVE/1S-2D ASSY£818.56 Add to
048K27500100300PLUG (PF1/4)N/A POA
049V21036060350BOLT,SP/M6X35N/A POA
050V30126000600NUT/M6£1.64 Add to
051V21036060200BOLT,SP/M6X20 (-622) (623-)£1.76 Add to
052180950330000HOSE/PS-P ASSYN/A POA
053172550831000ADAPTER/L/G1/4 ASSY£27.47 Add to
