CASE(TRANSMISSION/FRONT)SYSTEM

CASE(TRANSMISSION/FRONT)SYSTEM assembly details for Iseki CHASSIS PC SF4 (1809-097-100-10) SF450 model

Parts list

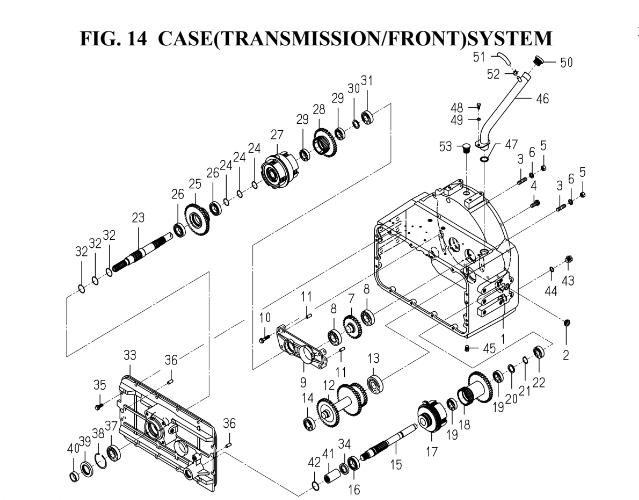

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001180920100110CASE/TRANSMISSIONN/A POA
002169024100300GAUGE/LEBEL£15.30 Add to
003V25134120250STUD/M12X25/7T£7.94 Add to
004172520100200BOLT/S£4.66 Add to
005V30446001200NUT/M12/7T£3.48 Add to
006V40116001200WASHER,SP/M12 (SSM60 -100000)£1.64 Add to
007180920101200GEAR/HELICAL/28N/A POA
008V60011062060BEARING,RB/6206 (SXG19 -4724) (SXG22 -1588)£19.53 Add to
009180920100300METAL/MISSION/PTON/A POA
010V23136100400FLANGEBOLT/M10X40N/A POA
011V52310100240PINN/A POA
012180920121000GEAR/HELICAL COMPN/A POA
013V60011063060BEARING,RB/6306£20.81 Add to
014V60011062050BEARING,RB/6205 (SXG19 -4724) (SXG22 -1588)£16.47 Add to
015180920101400SHAFT/PTO/SIDEN/A POA
016172920200300BEARING/BALLN/A POA
017180924531000CLUTCH/MOWER ASSY£664.64 Add to
018180920101500GEAR/HELICAL/39N/A POA
019172920200200BEARING/BALL (211435-)£11.85 Add to
020159330705210COLLAR/26X35X03£9.46 Add to
021172521800600RING/SNAP/CS25£1.77 Add to
022V60011062040BEARING,RB/6204£14.87 Add to
023180920122000SHAFT/CENTER COMP£465.14 Add to
024165020300800RING/30£7.57 Add to
025180920101800GEAR/HELICAL/40N/A POA
026172920200300BEARING/BALLN/A POA
027180924521000CLUTCH/BLOWER ASSY£1,300.62 Add to
028180920101700GEAR/HELICAL/36N/A POA
029172920200200BEARING/BALL (211435-)£11.85 Add to
030159330705210COLLAR/26X35X03£9.46 Add to
031V60011062050BEARING,RB/6205 (SXG19 -4724) (SXG22 -1588)£16.47 Add to
032175721801600RING/SEAL/35X02£15.35 Add to
033180920123010COVER/MISSION/PTO£897.39 Add to
034V74413050080SEAL,OIL/TC30508N/A POA
035V23136100250FLANGEBOLT/M10X25N/A POA
036V52310100240PINN/A POA
037V60011062060BEARING,RB/6206 (SXG19 -4724) (SXG22 -1588)£19.53 Add to
038V70514006200SNAP RING 62C£4.26 Add to
039161424400500SEAL/OIL£15.06 Add to
040161424400200SLEEVE£23.75 Add to
041172921800200COUPLING/23X34X60N/A POA
042V72310200340O-RING/1A,S34N/A POA
043142720100700PLUG,DRAINN/A POA
044V72010240160O-RING/1A,P16N/A POA
045V7821600004BPLUG/SCREW/SEAL (SXG19 -6253) (SXG22 -2066)N/A POA
046180920124010PIPE/FILLER/OIL COMPN/A POA
047V72010350260O-RING/1A,P26N/A POA
048V2012608016BBOLT/M8X16,SEALN/A POA
049V40116000800WASHER,SP/M8 (100545-)£1.60 Add to
050367635600100CAP/OIL (30)£10.50 Add to
051171650100610HOSE/BREATHER£6.36 Add to
052J06213814800CLIP/HOSE/13.8-14.8N/A POA
053796320800400CAP,OIL 23£14.54 Add to
