GAUGE WHEEL SYSTEM

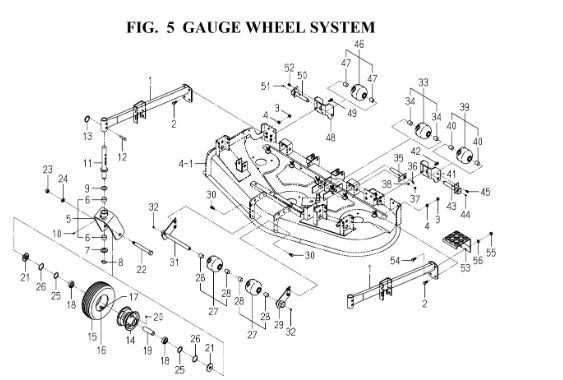

GAUGE WHEEL SYSTEM assembly details for Iseki PC SSM60-SF370 (8654-097-330-0A) SF370 - 310 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001865450121001ARM/GAUGE COMP£272.53 Add to
002V20136120250BOLT/M12X25/7T (-100414)£2.30 Add to
003V30446001200NUT/M12/7T£3.48 Add to
004V40116001200WASHER,SP/M12 (SSM60 -100000)£1.64 Add to
005865450120001FORK/WHEEL ASSY£124.73 Add to
006865450120100BUSH/30X34X20£17.25 Add to
007367070101000WASHER/30X50X05£12.02 Add to
008V70414003000RING,SNAP/30 C (SXG19 -6253) (SXG22 -2066)£2.30 Add to
009142743200500COLLAR,THRUST£9.94 Add to
010V76015000000NIPPLE, GREASE£3.96 Add to
011865450124010PIN/GAUGE COMP£192.97 Add to
012214410600500PIN/10X53£6.02 Add to
013865450100610SPRING/CLIP£6.44 Add to
014865450134010RIM/GAUGEWHEEL COMP£345.72 Add to
015865450132100TIRE/11X4.00-5£376.99 Add to
016138624100200VALVE/RIM£17.59 Add to
017V99920000300CAP,TIRE VALVE (100192-)£3.64 Add to
018V60014062040BEARING,RB/6204RS£16.94 Add to
019865450100510COLLAR/22X27X93£8.85 Add to
020V76315000000NIPPLE,GREASE/PT1/8 (-100295)N/A POA
021865450133010COLLAR/SEAL COMP£19.20 Add to
022865450100200PIN/20X175£59.89 Add to
023V30446001600NUT/M16£2.89 Add to
024V40116001600WASHER,SP/M16£1.64 Add to
025865450100800WASHER/34X47X01£3.61 Add to
026V70514004700RING,SNAP/47 C£2.98 Add to
027865450128000ROLLER ASSYN/A POA
028865450128300BUSH/22X25X25£15.72 Add to
029865450135000STAY/ROLLAR/F COMPN/A POA
030V21156100250BOLT,S/M10X25/7T (SXG19 -6253) (SXG22 -2066) (-100050)£3.49 Add to
031865450125010PIN/ROLLER/FRON COMP£162.07 Add to
032367316205500GREASE NIPPLE£3.10 Add to
033865450128000ROLLER ASSYN/A POA
034865450128300BUSH/22X25X25£15.72 Add to
035865450129010PIN/ROLLER/MID COMP£121.86 Add to
036V76415000000NIPPLE,GREASE/1/8N/A POA
037V30426000800NUT/M8 (SSM54 -100000)£1.64 Add to
038V40116000800WASHER,SP/M8 (100545-)£1.60 Add to
039865450128000ROLLER ASSYN/A POA
040865450128300BUSH/22X25X25£15.72 Add to
041865450100420STAY/ROLLER/REAR/LH£66.52 Add to
042V21156100250BOLT,S/M10X25/7T (SXG19 -6253) (SXG22 -2066) (-100050)£3.49 Add to
043865450126010PIN/ROLLER/REAR COMP£123.73 Add to
044367316205500GREASE NIPPLE£3.10 Add to
045V21156080160BOLT,S/M8X16/7T£3.76 Add to
046865450128000ROLLER ASSYN/A POA
047865450128300BUSH/22X25X25£15.72 Add to
048865450100720STAY/ROLLER/REAR/RH£65.30 Add to
049V21156100250BOLT,S/M10X25/7T (SXG19 -6253) (SXG22 -2066) (-100050)£3.49 Add to
050865450126010PIN/ROLLER/REAR COMP£123.73 Add to
051367316205500GREASE NIPPLE£3.10 Add to
052V21156080160BOLT,S/M8X16/7T£3.76 Add to
053865450137001STEP/MOWER COMP£103.09 Add to
054V20136120250BOLT/M12X25/7T (-100414)£2.30 Add to
055V30446001200NUT/M12/7T£3.48 Add to
056V40116001200WASHER,SP/M12 (SSM60 -100000)£1.64 Add to
