CASE (BEVEL) SYSTEM

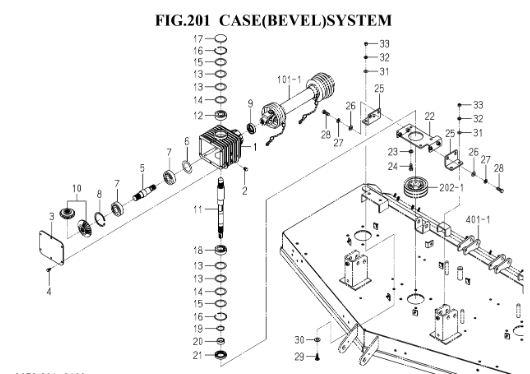

CASE (BEVEL) SYSTEM assembly details for Iseki PC SRM72 FOR SF370 (8673-095-100-0A) SF370 - 310 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001865420100130CASE/BEVEL£626.43 Add to
002795520102600PLUG,DRAIN (1/4)£7.42 Add to
003865420101100COVER/CASE£44.06 Add to
004V21156080160BOLT,S/M8X16/7T£3.76 Add to
005865420100200SHAFT/INPUT£225.15 Add to
006865420101500COLLAR/48X70X01£8.23 Add to
007793220100200BEARING,RB/6306SH2£48.35 Add to
008V70514007200RING,SNAP/R72£8.25 Add to
009V74413055120SEAL,OIL/TC305512£14.40 Add to
010867320121000GEAR/BEVEL/25-2 SETN/A POA
011867320100300SHAFT/OUTPUT£336.50 Add to
012159421800100BEARING/BALL 6305SH2£23.24 Add to
013865420100800SHIM/0.1£6.51 Add to
014865420100900SHIM/0.2£6.51 Add to
015867320100400WASHER/49X62X02£19.85 Add to
016V70514006200SNAP RING 62C£4.26 Add to
017364054700700PLUG,CAP/62X6£20.25 Add to
018V60011062060BEARING,RB/6206 (SXG19 -4724) (SXG22 -1588)£19.53 Add to
019148020701100WASHER/31X42X1 (SXG19 -6253) (SXG22 -2066)£5.70 Add to
020161424400200SLEEVE£23.75 Add to
021161424400500SEAL/OIL£15.06 Add to
022867320122000PLATE/CASE COMP£73.11 Add to
023V40116001200WASHER,SP/M12 (SSM60 -100000)£1.64 Add to
024V20136120250BOLT/M12X25/7T (-100414)£2.30 Add to
025867320100600STAY/CASE£29.11 Add to
026V41126001200WASHER,PL/M12 (SSM54 100001-)£2.64 Add to
027V40116001200WASHER,SP/M12 (SSM60 -100000)£1.64 Add to
028V20136120300BOLT/M12X30/7TN/A POA
029865420108300SQUARE NECK BOLTN/A POA
030V41126001400WASHER,PL/M14 (SSM60 100001-)£1.91 Add to
031V41126001000WASHER,PL/M10 (SXG19 -6253) (SXG22 -2066) (100545-)£1.52 Add to
032V40116001000WASHER,SP/M10 (100545-)£1.64 Add to
033V30426001000NUT/M10 (SXG19 3624-) (SXG22 1179-)£2.10 Add to
