INJECTION PUMP

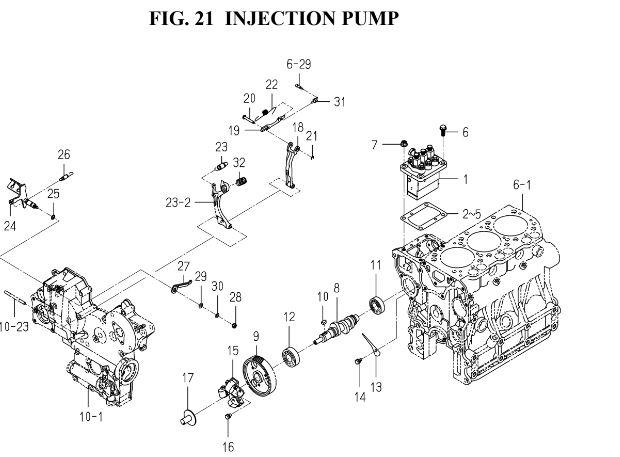

INJECTION PUMP assembly details for Iseki ENGINE E3CDVTG--SF370 (1770-097-100-0A) SF370 - 310 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001621560007810PUMP FUEL INJECTION£1,378.13 Add to
002621975204500SHIM/INJECTIONPUMP (236000-)£3.17 Add to
003621975204400SHIM/INJECTIONPUMP (236000-)£2.99 Add to
004621975204600SHIM/INJECTIONPUMP (236000-)£3.17 Add to
005621975204700SHIM/INJECTIONPUMP (236000-)£3.32 Add to
006V23136080200FLANGEBOLT/M8X20£1.66 Add to
007381740100100NUT/M08 (206026-)£1.53 Add to
008621562101810CAMSHAFT/INJECTION PUMP£294.95 Add to
009621252400630GEAR/INJECTIONPUMP£144.56 Add to
010620973000500KEY/07X05X09 (20508)£4.04 Add to
011V60011062030BEARING,RB/6203£13.01 Add to
012V60011060040BEARING,RB/6004 (-211434)£12.59 Add to
013621253500900PLATE/THRUST/INJPUMPN/A POA
014690191061200BOLT,SEMS/M6X12£3.96 Add to
015621552000710FLYWEIGHT ASSYN/A POA
016620903004300BOLT/M6X10N/A POA
017621552600400THRUSTPIECE£41.10 Add to
018621554100110ARM/FLOATING COMP£32.58 Add to
019621554300210RINK/CONTROL£13.02 Add to
020621554200600PIN,CONTROL£9.12 Add to
021V71014000400RING, SNAP/4 E£1.43 Add to
022621554903110SPRING/SETTING£12.51 Add to
023621553100610SPRING/GOVERNOR£15.52 Add to
024621554102430LEVER/CONTROL COMPN/A POA
025V72010190080O-RING/1A,P8£3.06 Add to
026620958000210SPRING,RETURN£3.37 Add to
027621554900710ARM/CONTROL (-180997)N/A POA
028690911040600NUT (-178958)£2.60 Add to
029V41126000600WASHER,PL/M6 (SXG19 7186-) (SXG22 2321-) (100464-)£1.64 Add to
030V40116000600WASHER,SP/M6 (SXG19 -7185) (SXG22 -2320) (100464-)£1.64 Add to
031621554903900SPRING/STARTING£4.12 Add to
032621553700210SPRING/IDLE£2.18 Add to
