LIFT LINK SYSTEM

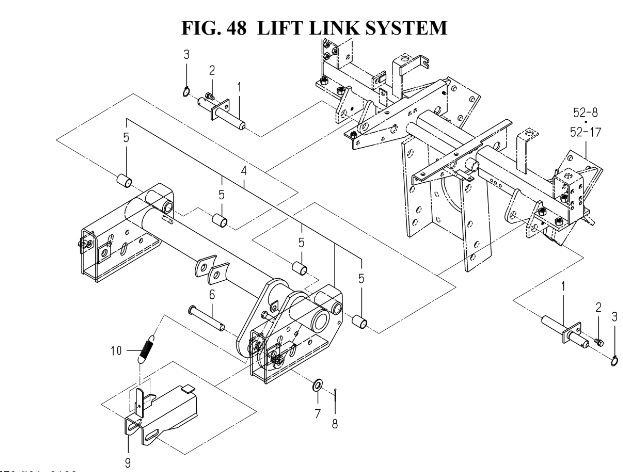

LIFT LINK SYSTEM assembly details for Iseki CHASSIS (1770-097-100-0A) SF370 - 310 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001177050124000PIN/LIFT COMP£33.29 Add to
002V21126080160BOLT,S/M8X16£2.09 Add to
003V70414002000RING,SNAP/20C£1.92 Add to
004177050120000ARM/LIFT ASSY£735.58 Add to
005163650123100BUSH/20X23X30£12.73 Add to
006177050100100PIN/16X107£24.89 Add to
007V41126001600WASHER,PL/M16£1.67 Add to
008V50016300300PIN,SPLIT/3X30 (-511)£1.64 Add to
009163650124020ARM/STOPPER COMP£35.45 Add to
010365022000500SPRING,FOOT PEDAL£2.51 Add to
