HST LINK SYSTEM

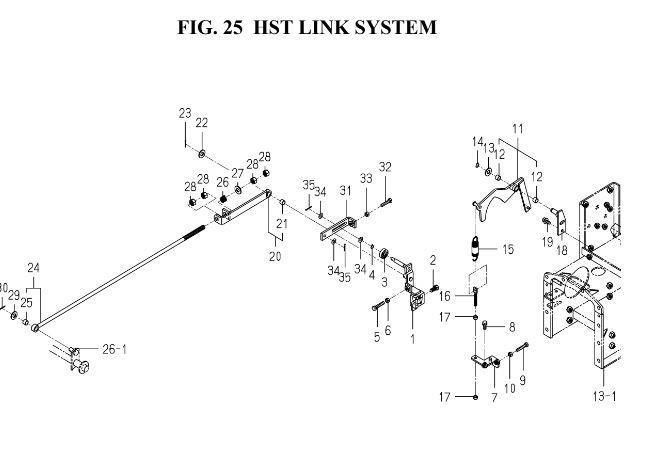

HST LINK SYSTEM assembly details for Iseki CHASSIS (1770-097-100-0A) SF370 - 310 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001177027121000ARM/TRUNNION COMPN/A POA
002164622605300BOLT/SM/M10X23N/A POA
003V60015062000BEARING,RB/6200SSN/A POA
004V70414001000RING,SNAP/28 C (195-) (100545-)N/A POA
005V20126080400BOLT/M8X40 (SXG19 -3266) (SXG22 -1072)N/A POA
006V30426000800NUT/M8 (SSM54 -100000)£1.64 Add to
007177027129010PLATE/L COMPN/A POA
008V21126080200BOLT,S/M8X20£2.09 Add to
009V20126080400BOLT/M8X40 (SXG19 -3266) (SXG22 -1072)N/A POA
010V30426000800NUT/M8 (SSM54 -100000)£1.64 Add to
011177027122010ARM/NEUTRAL ASSYN/A POA
012365611500200BUSH/12X14X10£3.09 Add to
013V41126001200WASHER,PL/M12 (SSM54 100001-)£2.64 Add to
014V70414001200RING,SNAP/12 C£1.76 Add to
015177027100300SPRING/HE085£6.53 Add to
016383820300100ROD/08X057£8.86 Add to
017V30426000800NUT/M8 (SSM54 -100000)£1.64 Add to
018172027122000PLATE/ADJUST COMPN/A POA
019V21136080200BOLT,SP/M8X20 (SXG19 -9113) (SXG22 -3049)£2.10 Add to
020177027128000PLATE/L/25X200 ASSY£32.92 Add to
021365611500200BUSH/12X14X10£3.09 Add to
022V41126001200WASHER,PL/M12 (SSM54 100001-)£2.64 Add to
023V50016300200PIN,SPLIT/3X20 (SXG19 -636) (SXG22 -116)£1.52 Add to
024177027126000ROD/HST ASSY£43.37 Add to
025365611500200BUSH/12X14X10£3.09 Add to
026156453001100SPRING/HC014£10.78 Add to
027V41126001200WASHER,PL/M12 (SSM54 100001-)£2.64 Add to
028V30426001200NUT/M12 (SSM60 -100000)£3.02 Add to
029V41126001200WASHER,PL/M12 (SSM54 100001-)£2.64 Add to
030V50016300200PIN,SPLIT/3X20 (SXG19 -636) (SXG22 -116)£1.52 Add to
031177027127000PLATE/L/25X126 COMP£10.94 Add to
032V20126080350BOLT/M8X35 (SXG19 3267-) (SXG22 1073-)£1.51 Add to
033V30426000800NUT/M8 (SSM54 -100000)£1.64 Add to
034V41126000800WASHER, PL/M8£1.64 Add to
035V50016300200PIN,SPLIT/3X20 (SXG19 -636) (SXG22 -116)£1.52 Add to
