REPAIR PARTS (OPTION) 1

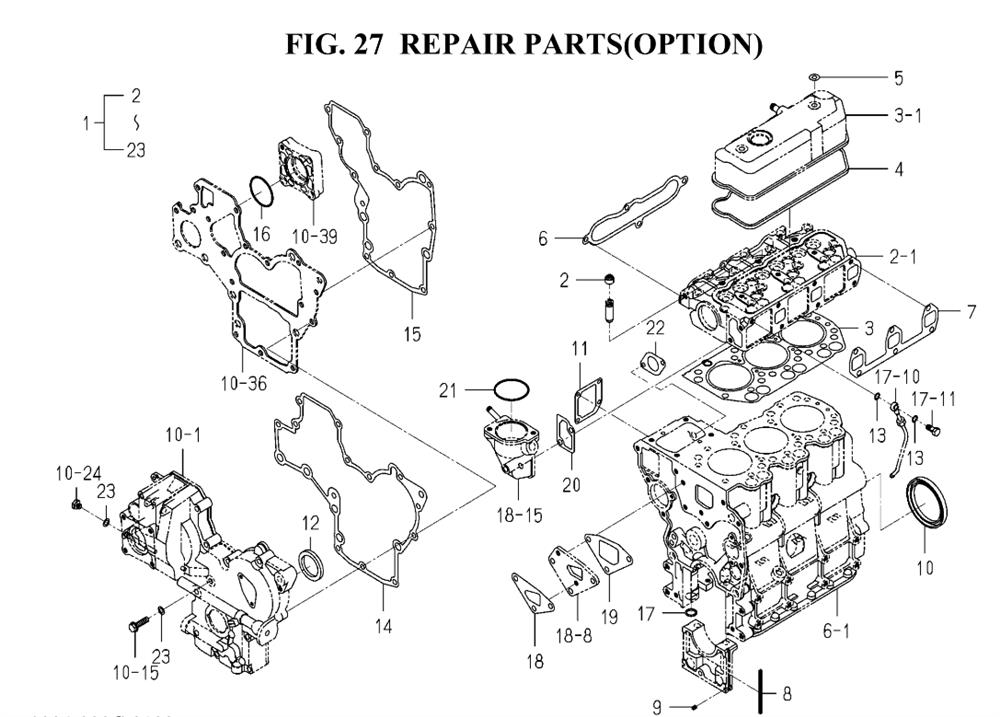

REPAIR PARTS (OPTION) 1 assembly details for Iseki ENGINE (E3112-G08) SF224F SF224 - SF235 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	628781001530	REPAIR/ENGINE SET	N/A	POA
002	621256900200	SEAL,OIL	£6.11	Add to
003	621114102920	GASKET/CYLINDERHEAD	£127.45	Add to
004	621117300300	SEAL,CYL.HEAD COVER	£23.09	Add to
005	620957200300	GASKET E3CD VG02 (264649)	£2.65	Add to
006	621411500120	GASKET,INLET MANIFOL	£16.22	Add to
007	621414500130	GASKET,EXH,MANIFOLD	£39.31	Add to
008	621125800100	SEAL, BEARING CAP	£10.56	Add to
009	621125800200	SEAL, BEARING CAP/7	£13.05	Add to
010	620962500100	SEAL, OIL	£36.82	Add to
011	621129200120	GASKET/COVER	£9.25	Add to
012	620962500200	SEAL,OIL	£10.05	Add to
013	620992000200	PACKING	£1.87	Add to
014	621131200320	GASKET/GEARCASE	£53.17	Add to
015	621131200420	GASKET/PLATE	£43.37	Add to
016	V72310200500	O-RING/1A,S50	£2.71	Add to
017	V72010240150	O-RING/1A,P15 (SXG19 -4902) (SXG22 -1642)	£2.38	Add to
018	621361401800	GASKET/WATERPUMP	£10.78	Add to
019	621361401900	GASKET/SPACER	£13.53	Add to
020	621374300210	GASKET/HOUSING	£9.50	Add to
021	V72310200550	O-RING/1A,S55	£3.10	Add to
022	620963000210	GASKET	£6.02	Add to
023	620950000300	WASHER/08X14X01	£2.09	Add to
