LINK SYSTEM

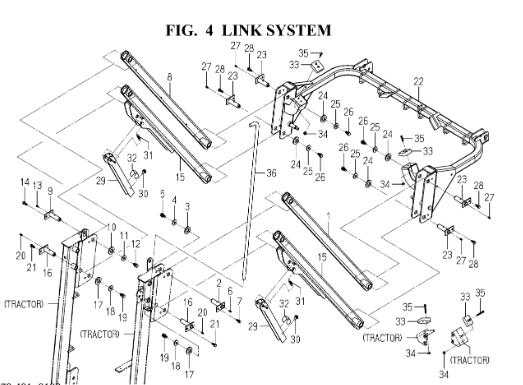

LINK SYSTEM assembly details for Iseki COLLECTOR SBC950F (8679-097-100-00) SF224 - SF235 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001867940121000LINK/LIFT/UPPER/LHN/A POA
002867640133000LINK/LIFT/UPPER/LH£29.12 Add to
003171964000700WASHER/21X40X4.5£2.21 Add to
004365917000300WASHER/11X30X3£2.89 Add to
005V21156100200BOLT,S/M10X20/7T£2.64 Add to
006V76015000000NIPPLE, GREASE£3.96 Add to
007V21156080200BOLT,S/M8X20/7T (SXG19 -4724) (SXG22 -1590)£2.69 Add to
008867940122000LINK/LIFT/UPPER/RHN/A POA
009867640133000LINK/LIFT/UPPER/LH£29.12 Add to
010171964000700WASHER/21X40X4.5£2.21 Add to
011365917000300WASHER/11X30X3£2.89 Add to
012V21156100200BOLT,S/M10X20/7T£2.64 Add to
013V76015000000NIPPLE, GREASE£3.96 Add to
014V21156080200BOLT,S/M8X20/7T (SXG19 -4724) (SXG22 -1590)£2.69 Add to
015867940123000LINK/LIFT/LOWER COMPN/A POA
016867640133000LINK/LIFT/UPPER/LH£29.12 Add to
017171964000700WASHER/21X40X4.5£2.21 Add to
018365917000300WASHER/11X30X3£2.89 Add to
019V21156100200BOLT,S/M10X20/7T£2.64 Add to
020V76015000000NIPPLE, GREASE£3.96 Add to
021V21156080200BOLT,S/M8X20/7T (SXG19 -4724) (SXG22 -1590)£2.69 Add to
022867940125000BASE/CONTAINER COMPN/A POA
023867640133000LINK/LIFT/UPPER/LH£29.12 Add to
024171964000700WASHER/21X40X4.5£2.21 Add to
025365917000300WASHER/11X30X3£2.89 Add to
026V21156100200BOLT,S/M10X20/7T£2.64 Add to
027V76015000000NIPPLE, GREASE£3.96 Add to
028V21156080200BOLT,S/M8X20/7T (SXG19 -4724) (SXG22 -1590)£2.69 Add to
029867640128010STOPPER COMP£55.31 Add to
030143261600200RUBBER,CUSHION£3.29 Add to
031142662101800SPRING,TENSION£13.04 Add to
032867640100900RUBBER/STOPPER£5.02 Add to
033867640101300STOPPER/C£20.93 Add to
034111860600210U-NUT£2.21 Add to
035V11116600250SCREW/M6X25£1.38 Add to
036866410500110BAR£21.24 Add to
