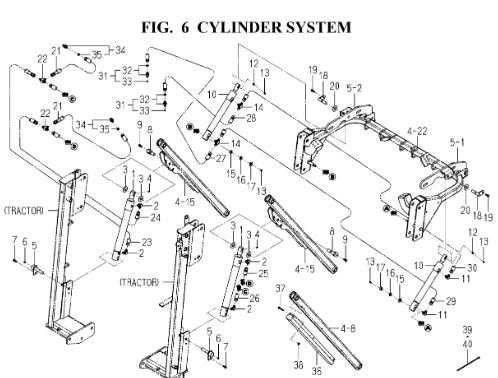

CYLINDER SYSTEM assembly details for Iseki COLLECTOR SBC950F (8679-097-100-00) SF224 - SF235 model
Parts list
Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
Ref | No | Description | Price | |
---|
001 | 867650171000 | CYLINDER/LIFT ASSY | £834.28 | Add to |
002 | 376818502210 | ADAPTER/90DEG/PUMP(-100638) | £15.93 | Add to |
003 | 867650100300 | WASHER/17X40X02 | £5.37 | Add to |
004 | V76015000000 | NIPPLE, GREASE | £3.96 | Add to |
005 | 867650124000 | PIN/16X81 COMP | £41.23 | Add to |
006 | V76015000000 | NIPPLE, GREASE | £3.96 | Add to |
007 | V21156080200 | BOLT,S/M8X20/7T (SXG19 -4724) (SXG22 -1590) | £2.69 | Add to |
008 | 867650125000 | PIN/16X55 COMP | £23.10 | Add to |
009 | V21156080200 | BOLT,S/M8X20/7T (SXG19 -4724) (SXG22 -1590) | £2.69 | Add to |
010 | 867950131000 | CYLINDER/DUMP ASSY | £616.97 | Add to |
011 | 376818502210 | ADAPTER/90DEG/PUMP(-100638) | £15.93 | Add to |
012 | V40116000600 | WASHER,SP/M6 (SXG19 -7185) (SXG22 -2320) (100464-) | £1.64 | Add to |
013 | V76015000000 | NIPPLE, GREASE | £3.96 | Add to |
014 | 867650100100 | ADAPTER/T/R1/4 | £33.68 | Add to |
015 | V41126001200 | WASHER,PL/M12 (SSM54 100001-) | £2.64 | Add to |
016 | V40116001200 | WASHER,SP/M12 (SSM60 -100000) | £1.64 | Add to |
017 | V30426001200 | NUT/M12 (SSM60 -100000) | £3.02 | Add to |
018 | 867650125000 | PIN/16X55 COMP | £23.10 | Add to |
019 | V21156080200 | BOLT,S/M8X20/7T (SXG19 -4724) (SXG22 -1590) | £2.69 | Add to |
020 | 867650100300 | WASHER/17X40X02 | £5.37 | Add to |
021 | 867950141000 | HOSE/HYDRO/350 ASSY | N/A | POA |
022 | 866455500300 | ADAPTER/T | £20.58 | Add to |
023 | 867950141000 | HOSE/HYDRO/350 ASSY | N/A | POA |
024 | 867650144000 | HOSE/HYDRO/700 ASSY | N/A | POA |
025 | 867650142000 | HOSE/HYDRO/1300 ASSY | £152.09 | Add to |
026 | 867650143000 | HOSE/HYDRO/1050 ASSY | £127.19 | Add to |
027 | 866455586000 | HOSE/HYDRO/2250 ASSY | £107.55 | Add to |
028 | 867650141000 | HOSE/HYDRO/2325 ASSY | N/A | POA |
029 | 867650127000 | HOSE/HYDRO/1925 ASSY | £183.76 | Add to |
030 | 867650142000 | HOSE/HYDRO/1300 ASSY | £152.09 | Add to |
031 | 866455527000 | ADAPTER/ORIFICE ASSY | £23.90 | Add to |
032 | V72011240110 | O-RING/1B,P11 (SXG19 -4766) (SXG22 -1600) | £3.64 | Add to |
033 | K21100401400 | SCREW,ORIFICE | N/A | POA |
034 | 382938741000 | ADAPTER/G1/4.1/4 | £9.74 | Add to |
035 | V72011240110 | O-RING/1B,P11 (SXG19 -4766) (SXG22 -1600) | £3.64 | Add to |
036 | 867650100710 | COVER/HOSE | £70.36 | Add to |
037 | V20026060400 | BOLT/M6X40 | £1.47 | Add to |
038 | V36026000600 | NUT/WASHER/M6 | £1.47 | Add to |
039 | 137640200300 | BAND,WIRE/140 (SXG19 515-) (SXG22 102-) (-622) (623-) | £5.34 | Add to |
040 | 134240200600 | BAND,WIRE/250 (SXG19 515-) (SXG22 102-) (-622) (623-) | £7.43 | Add to |
