LINK(HST)SYSTEM

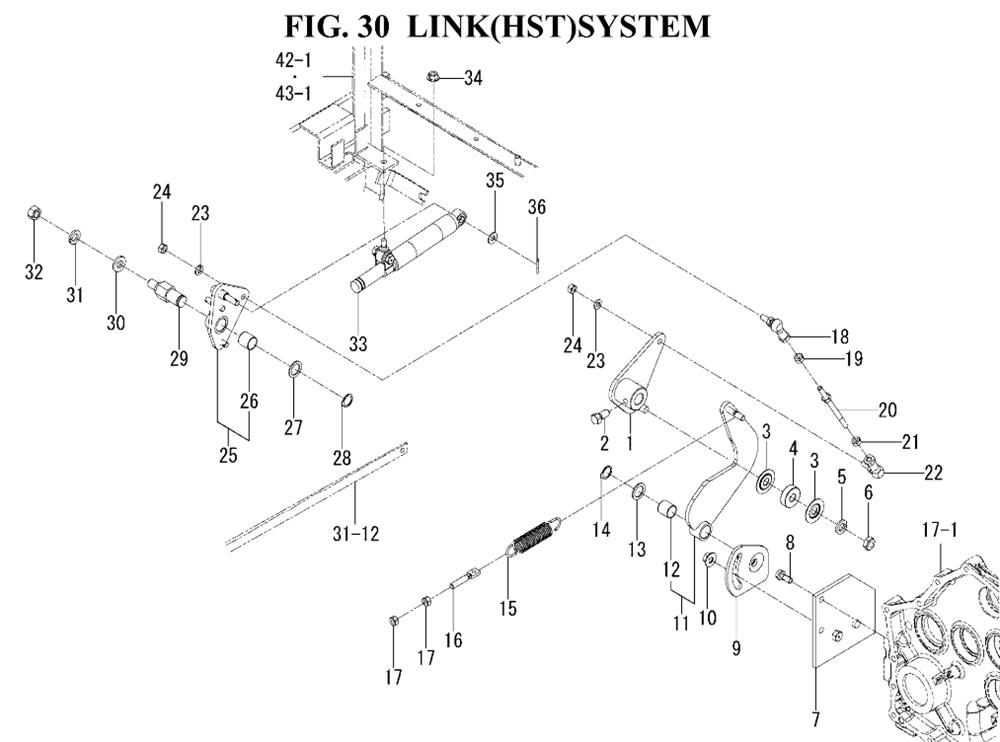

LINK(HST)SYSTEM assembly details for Iseki CHASSIS (SF224-235)(1832-097-100-00) SF224 - SF235 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001183227121000ARM/TRUNNION COMPN/A POA
002164622605300BOLT/SM/M10X23N/A POA
003168927100600WASHER/38X12X2N/A POA
004V60015062010BEARING,RB/6201SS (104713-)£11.17 Add to
005V40116001200WASHER,SP/M12 (SSM60 -100000)£1.64 Add to
006V30526001200NUT/M12£1.92 Add to
007183227124000BRACKET/NEUTRAL COMPN/A POA
008V21156080200BOLT,S/M8X20/7T (SXG19 -4724) (SXG22 -1590)£2.69 Add to
009183227123000PLATE/ADJUST COMPN/A POA
010V36326001000NUT/WASHER/M10£2.64 Add to
011183227126000ARM/NEUTRAL ASSYN/A POA
012250413500810BUSH/18X20X20£8.86 Add to
013214441902200WASHER/18X26X02£1.85 Add to
014V70414001800RING,SNAP/18 CN/A POA
015250021001600SPRING/HE108 (SXG22 -35)£8.87 Add to
016183227100200ROD/M08X47N/A POA
017V30426000800NUT/M8 (SSM54 -100000)£1.64 Add to
018156069502100JOINT BALL M08RH£24.76 Add to
019V30426000800NUT/M8 (SSM54 -100000)£1.64 Add to
020168327156000ROD/M08X110 COMP£19.43 Add to
021156013200730NUT/LH/M08£2.30 Add to
022156069502200JOINT BALL M08LH£24.76 Add to
023V40116000800WASHER,SP/M8 (100545-)£1.60 Add to
024V30426000800NUT/M8 (SSM54 -100000)£1.64 Add to
025183227125000ARM/HST ASSYN/A POA
026250413500810BUSH/18X20X20£8.86 Add to
027214441902200WASHER/18X26X02£1.85 Add to
028V70414001800RING,SNAP/18 CN/A POA
029183227100100PIN/COUNTER/HSTN/A POA
030350441800710WASHER,SUPPORT£2.52 Add to
031V40116001200WASHER,SP/M12 (SSM60 -100000)£1.64 Add to
032V30446001200NUT/M12/7T£3.48 Add to
033164664058000DAMPER/OIL ASSY£110.32 Add to
034V36226000800NUT/WASHER/M8£1.77 Add to
035V41126000800WASHER, PL/M8£1.64 Add to
036V50016250200PIN,SPLIT/2.5X20 (SXG19 9442-) (SXG22 3149-)£1.64 Add to
