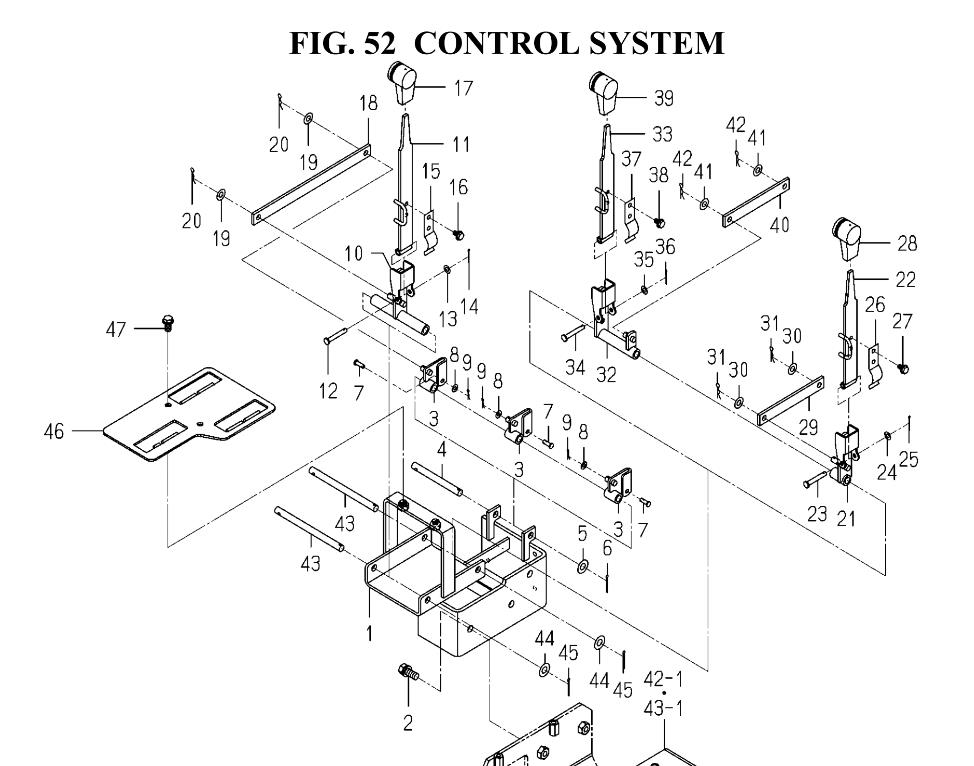

CONTROL SYSTEM

CONTROL SYSTEM assembly details for Iseki CHASSIS (SF224-235)(1832-097-100-00) SF224 - SF235 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001183250325000BRACKET/VALVE COMPN/A POA
002V21126100250BOLT,S/M10X25£2.12 Add to
003183250321000ARM/SPOOL COMPN/A POA
004183250300300PIN/10X101N/A POA
005V41126001000WASHER,PL/M10 (SXG19 -6253) (SXG22 -2066) (100545-)£1.52 Add to
006V50016250250PIN,SPLIT/2.5X25N/A POA
007177150300300PIN/05X17N/A POA
008V41126000500WASHER,PL/M5N/A POA
009V56016000500PIN/SNAPN/A POA
010183250322000ARM/LIFT/MOWER COMPN/A POA
011180950322010LEVER/LIFT COMPN/A POA
012214558600200PIN/6X42£7.17 Add to
013V41126000600WASHER,PL/M6 (SXG19 7186-) (SXG22 2321-) (100464-)£1.64 Add to
014V50016200200PIN,SPLIT/2X20 (SXG19 -9441) (SXG22 -3148)N/A POA
015180950300300SPRING/PLATE£4.94 Add to
016V23036060100FLANGEBOLT/M6X10£1.43 Add to
017144430700700GRIP£14.54 Add to
018183250300100PLATE/I/19X254N/A POA
019V41126000800WASHER, PL/M8£1.64 Add to
020V41126000800WASHER,PL/M 8£1.53 Add to
021183250323000ARM/LIFT/COLLECTORN/A POA
022183250327010LEVER/COLLECTOR COMP£28.05 Add to
023214558600200PIN/6X42£7.17 Add to
024V41126000600WASHER,PL/M6 (SXG19 7186-) (SXG22 2321-) (100464-)£1.64 Add to
025V50016200200PIN,SPLIT/2X20 (SXG19 -9441) (SXG22 -3148)N/A POA
026180950300300SPRING/PLATE£4.94 Add to
027V23036060100FLANGEBOLT/M6X10£1.43 Add to
028144430700700GRIP£14.54 Add to
029183250300200PLATE/I/19X140N/A POA
030V41126000800WASHER, PL/M8£1.64 Add to
031V41126000800WASHER,PL/M 8£1.53 Add to
032183250324000ARM/DUMP/COLLECTORN/A POA
033183250327010LEVER/COLLECTOR COMP£28.05 Add to
034214558600200PIN/6X42£7.17 Add to
035V41126000600WASHER,PL/M6 (SXG19 7186-) (SXG22 2321-) (100464-)£1.64 Add to
036V50016200200PIN,SPLIT/2X20 (SXG19 -9441) (SXG22 -3148)N/A POA
037180950300300SPRING/PLATE£4.94 Add to
038V23036060100FLANGEBOLT/M6X10£1.43 Add to
039144430700700GRIP£14.54 Add to
040183250300200PLATE/I/19X140N/A POA
041V41126000800WASHER, PL/M8£1.64 Add to
042V41126000800WASHER,PL/M 8£1.53 Add to
043183250300400PIN/10X141N/A POA
044V41126001000WASHER,PL/M10 (SXG19 -6253) (SXG22 -2066) (100545-)£1.52 Add to
045V50016250250PIN,SPLIT/2.5X25N/A POA
046183250328000GUIDE/LEVER COMPN/A POA
047V23136080160FLANGEBOLT/M8X16 (SXG19 9114-) (SXG22 3050-)£1.67 Add to
