AUTO(4WD)SYSTEM

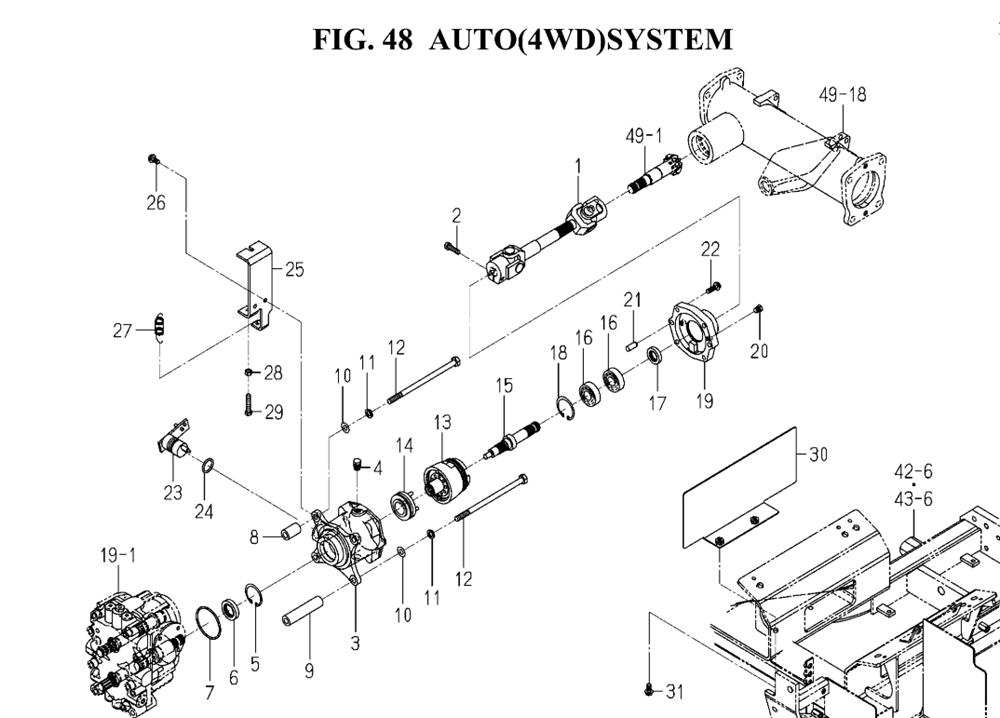

AUTO(4WD)SYSTEM assembly details for Iseki CHASSIS (SF224-235)(1832-097-100-00) SF224 - SF235 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001183243121000SHAFT/4WD ASSYN/A POA
002221331201300BOLT/SEAL/M8X30X9T£3.65 Add to
003183243100300CASE/4WDN/A POA
004V7821600004BPLUG/SCREW/SEAL (SXG19 -6253) (SXG22 -2066)N/A POA
005V70514004500RING,SNAP/45 CN/A POA
006V74412545080SEAL,OIL/TC25458N/A POA
007V72110310650O-RING/1A,G65£4.79 Add to
008183243100400HUB/12X22X30N/A POA
009183243100500HUB/12X22X97N/A POA
010V41126001000WASHER,PL/M10 (SXG19 -6253) (SXG22 -2066) (100545-)£1.52 Add to
011V40116001000WASHER,SP/M10 (100545-)£1.64 Add to
012183243100600BOLT/M10X190N/A POA
013172022121000CLUTCH ASSY£1,186.75 Add to
014172022123000SLEEVE ASSY£184.36 Add to
015183243100100SHAFT/OUTPUTN/A POA
016V60011062040BEARING,RB/6204£14.87 Add to
017V74412035070SEAL,OIL/TC20357N/A POA
018V70514004700RING,SNAP/47 C£2.98 Add to
019183243100200METAL/4WDN/A POA
020V7821600002BPLUG/SCREW/SEALN/A POA
021V52310100220PIN,ST,B/10X22 ( SXG19 -6253) (SXG22 -2066)N/A POA
022V23136080250FLANGEBOLT/M8X25 (SXG19 9114-) (SXG22 3050-)£1.61 Add to
023183243100700PLATEN/A POA
024V72010350240O-RING/1A,P24N/A POA
025183243100700PLATEN/A POA
026V23136080160FLANGEBOLT/M8X16 (SXG19 9114-) (SXG22 3050-)£1.67 Add to
027156053102000SPRING/HE068£4.18 Add to
028V30426000800NUT/M8 (SSM54 -100000)£1.64 Add to
029V20136080400BOLT/M8X40/7TN/A POA
030183243123010COVER/4WD COMPN/A POA
031V23136080160FLANGEBOLT/M8X16 (SXG19 9114-) (SXG22 3050-)£1.67 Add to
