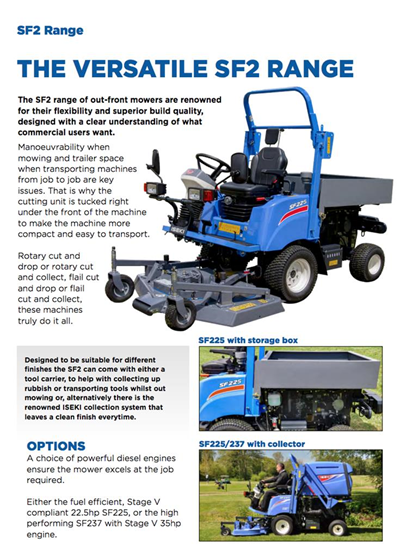

THE VERSATILE SF2 RANGE

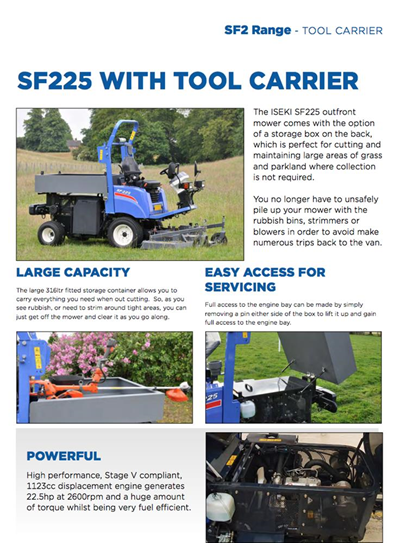

Designed to be suitable for different finishes the SF2 can come with either a tool carrier, to help with collecting up rubbish or transporting tools whilst out mowing or, alternatively there is the renowned ISEKI collection system that leaves a clean finish everytime.
The SF2 range of out-front mowers are renowned for their flexibility and superior build quality, designed with a clear understanding of what commercial users want.
Manoeuvrability when mowing and trailer space when transporting machines from job to job are key issues. That is why the cutting unit is tucked right under the front of the machine to make the machine more compact and easy to transport.
Rotary cut and drop or rotary cut and collect, flail cut and drop or flail cut and collect, these machines truly do it all.
SF225 with storage box OPTIONS SF225/237 with collector A choice of powerful diesel engines ensure the mower excels at the job required. Either the fuel efficient, Stage V compliant 22.5hp SF225, or the high performing SF237 with Stage V 35hp engine.
For more details and prices please contact us on 01159200099 or email info@worldofmowers.ltd.uk
Part Exchange Available

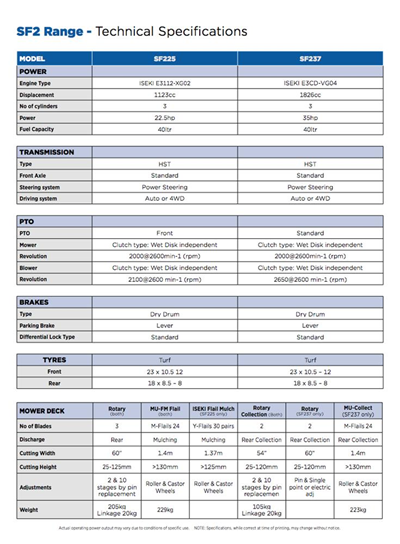

SF2 Range - Technical Specifications
Actual operating power output may vary due to conditions of specific use. NOTE: Specifications, while correct at time of printing, may change without notice. MODEL SF225 SF237 POWER Engine Type ISEKI E3112-XG02 ISEKI E3CD-VG04 Displacement 1123cc 1826cc No of cylinders 3 3 Power 22.5hp 35hp Fuel Capacity 40ltr 40ltr TRANSMISSION Type HST HST Front Axle Standard Standard Steering system Power Steering Power Steering Driving system Auto or 4WD Auto or 4WD PTO PTO Front Standard Mower Clutch type: Wet Disk independent Clutch type: Wet Disk independent Revolution 2000@2600min-1 (rpm) 2000@2600min-1 (rpm) Blower Clutch type: Wet Disk independent Clutch type: Wet Disk independent Revolution 2100@2600 min-1 (rpm) 2650@2600 min-1 (rpm) BRAKES Type Dry Drum Dry Drum Parking Brake Lever Lever Differential Lock Type Standard Standard TYRES Turf Turf Front 23 x 10.5 12 23 x 10.5 – 12 Rear 18 x 8.5 – 8 18 x 8.5 – 8 MOWER DECK Rotary (both) MU-FM Flail (both) ISEKI Flail Mulch (SF225 only) Rotary Collection (Both) Rotary (SF237 only) MU-Collect (SF237 only) No of Blades 3 M-Flails 24 Y-Flails 30 pairs 2 2 M-Flails 24 Discharge Rear Mulching Mulching Rear Collection Rear Collection Rear Collection Cutting Width 60” 1.4m 1.37m 54” 60” 1.4m Cutting Height 25-125mm >130mm >125mm 25-120mm 25-120mm >130mm Adjustments 2 & 10 stages by pin replacement Roller & Castor Wheels Roller & Castor Wheels 2 & 10 stages by pin replacemen Pin & Single point or electric adj Roller & Castor Wheels Weight 205kg Linkage 20kg 229kg 105kg Linkage 20kg 223kg
MODEL SF225 SF237 COLLECTOR Model SBC950 SBC950 F3 Capacity 950ltr 950ltr Dump System Hydraulic Hydraulic Height of Lift 2130mm 2250mm Weight 160kg 160kg DIMENSIONS Height 2,115mm 2,120mm Width 1,245mm 1,245mm Length 2,725mm 2,790mm Wheelbase 1,275mm 1,375mm Total Weight 870kg 1,060kg
