Product details and specs

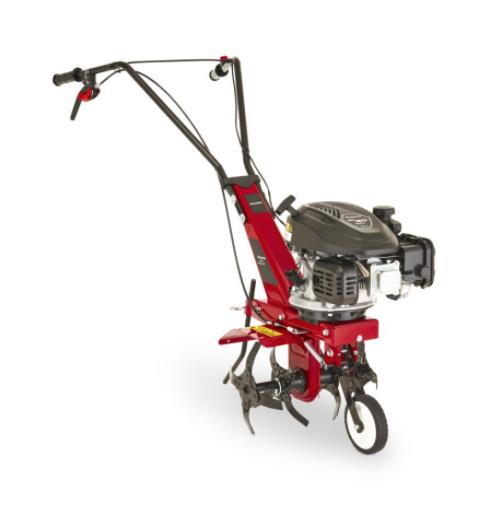

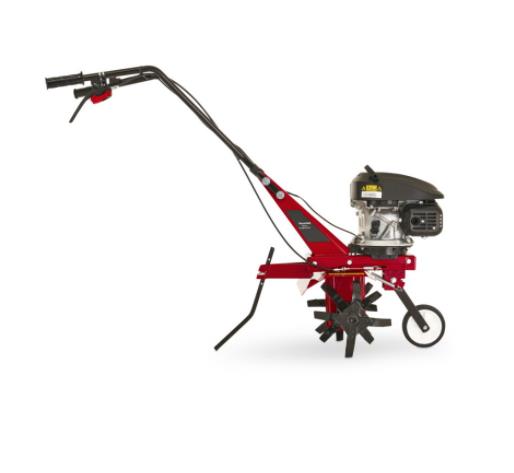

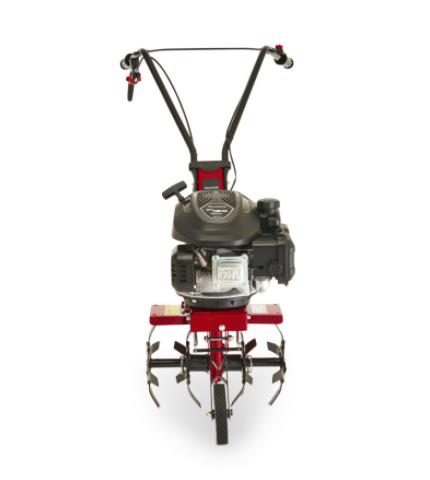

The Manor Compact 36V is a sturdy machine. Powered by STIGA, ST120 OHV engine with a capacity of 123cc, the working width is 36cm resulting in only needing a few passes to cultivate a large area of soil.
The body is made from pressed steel and with a total weight of 27kg, it is a joy to work with. It really will help clear complete allotments in a blink of an eye, allowing you plenty of time to sort out the rest of your garden and relax in a deckchair watching your carrot seeds grow.
WORKING SYSTEM
| Working width | 36 cm |
|---|
| Rotors number | 4 |
|---|
| Rotors diameter | 245 mm |
|---|
EQUIPMENT
| Wheel type | Plastic + Rubber |
|---|
| Transport wheels | 1 front wheel |
|---|
| Soft grip handle | Yes |
|---|
OVERALL DIMENSIONS
| Pack weight | 31 kg |
|---|
| Product length | 1140 mm |
|---|
| Product width | 360 mm |
|---|
| Product height | 950 mm |
|---|
| Weight | 27 kg |
|---|
POWER
| Power source | Petrol 4-stroke |
|---|
| Power | 1.9 kW |
|---|
| Engine Brand | STIGA |
|---|
| Engine model | ST 120 OHV Autochoke |
|---|
| Displacement | 123 cm³ |
|---|
| Engine rotation speed | 2900 rpm |
|---|
| Maximum engine speed | 3200 rpm |
|---|
| Fuel tank capacity | 0.8 l |
|---|
| Gear case oil capacity | 0.45 l |
|---|
| Air filter type | Sponge |
|---|
TRANSMISSION
| Number of gears | 1 forward |
|---|
| Transmission type | Worm and gear in oil bath + belt |
|---|
VIBRATION AND NOISE DATA
| Guaranteed sound power level (LwA) - dB(A) | 93 |
|---|
| Vibration level left handle (m/s2) | 4.5 |
|---|
| Measured sound power level dB(A) | 91 |
|---|
| Vibration level right handle (m/s2) | 4.5 |
|---|
| Measured sound pressure level at operator ear dB(A) | 76 |
|---|
