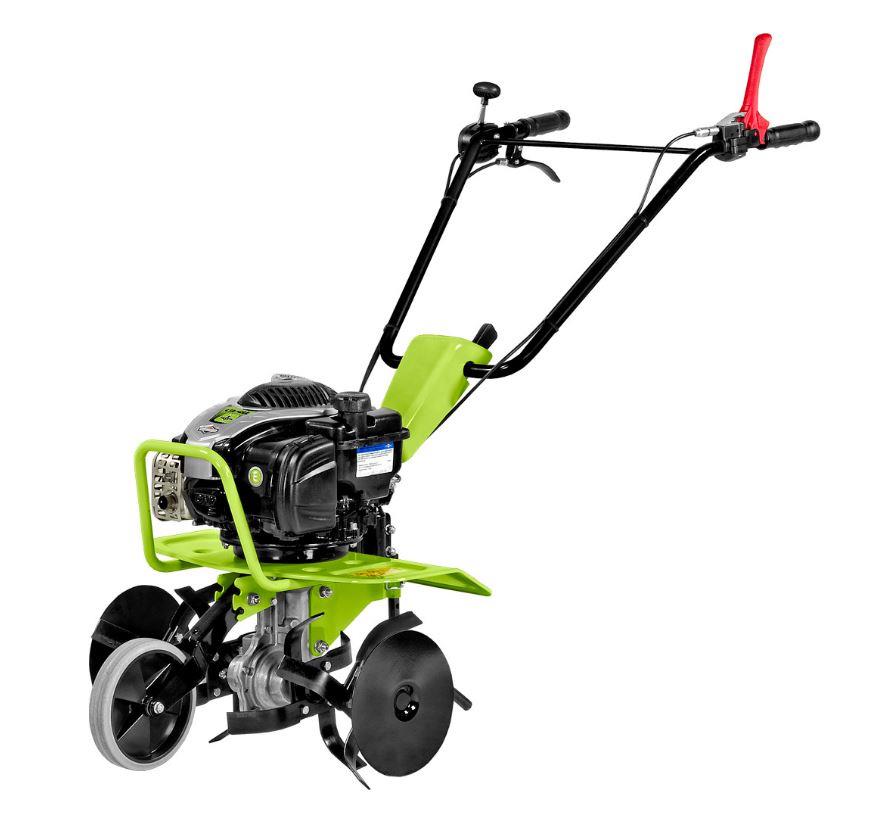

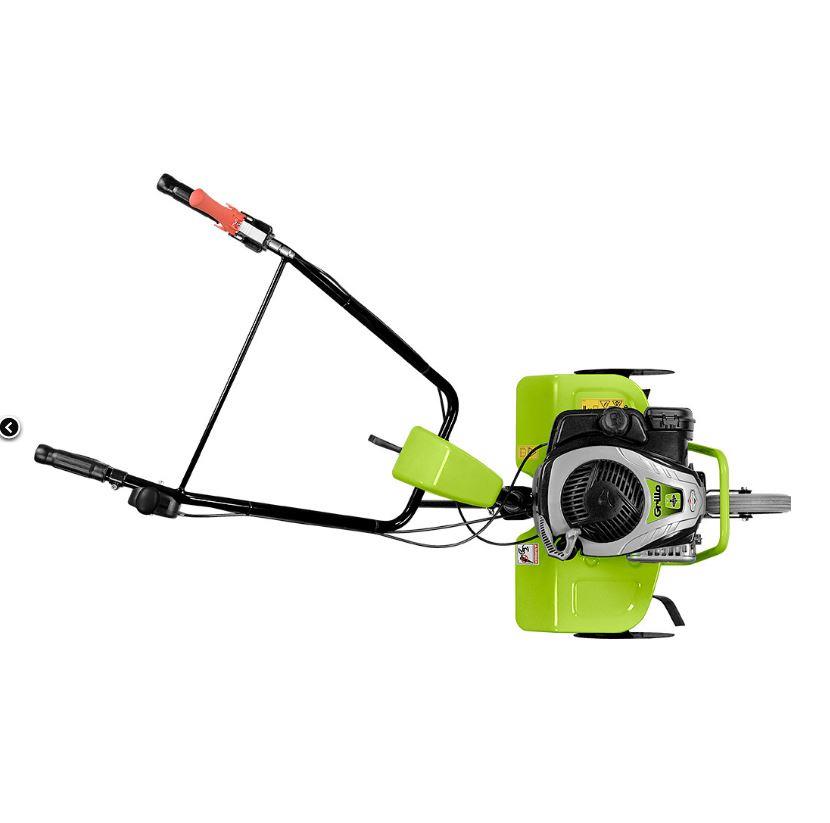

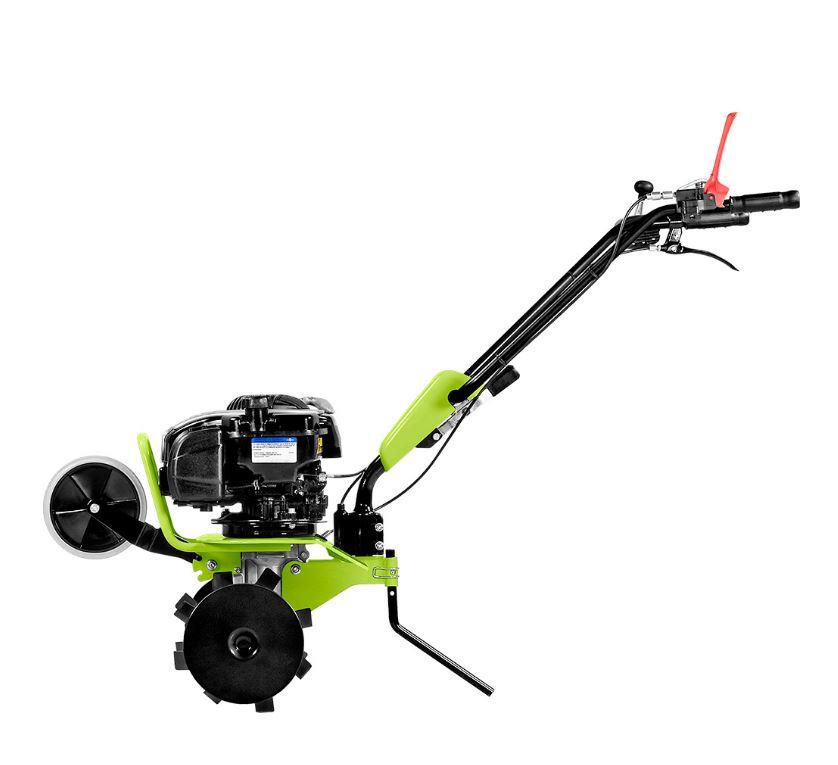

Grillo GZ1 Petrol Rotavator (8BXAY)

Grillo GZ1 Petrol Rotavator (8BXAY)
Grillo GZ1 Petrol Rotavator (8BXAY)Grillo GZ1 Petrol Rotavator (8BXAY)Grillo GZ1 Petrol Rotavator (8BXAY)Grillo GZ1 Petrol Rotavator (8BXAY)Grillo GZ1 Petrol Rotavator (8BXAY)Grillo GZ1 Petrol Rotavator (8BXAY)Grillo GZ1 Petrol Rotavator (8BXAY)
Grillo

The Grillo GZ1 is equipped with an active coupling device: if you depress the lever on the handle, you will engage the tines. When the lever is released the tines stop immediately whilst the engine will keep on running.
The side discs should not be used when you till on hard soil that has not been previously tilled.
The side discs are very useful on soft soil, they help to keep the machine in a straight line and also protect the plants around the area being tilled.

This model is compact, and is ideal for tilling the ground near to corners or in confined spaces.
The tiller has a width of just 57 cm.

The tines turn even when the tiller is not moving forward enabling you to put the machine into reverse with very little effort.

The tiller is fitted as standard with two different spurs: one is suitable for soft soil while the other is suitable for hard soiI. The spurs adjustment determines the machines working depth.
A low adjusted spur will make the tines dig deeper into the soil.

A high adjusted spur will move the centre of gravity forwards and the machine will move forwards more rapidly.
The use of side discs together with a high adjusted spur will increase the uplift and advancement.
The GZ1 is fast, well-balanced and precise!
The gearbox which is in an oil bath ensures maximum strength and longevity. It was completely designed and manufactured by Grillo in their own facility.The 3 HP engine ensures the optimum torque for tilling at 2400 rpm ! You can till slowly starting at 80 – 90 rpm or rapidly up to 155 rpm, depending on the soil's condition and the required tilth.
The engine power is no obstacle for the GZ1, even if you till in depth with the tiller at its maximum width and completely embedded into the soil.

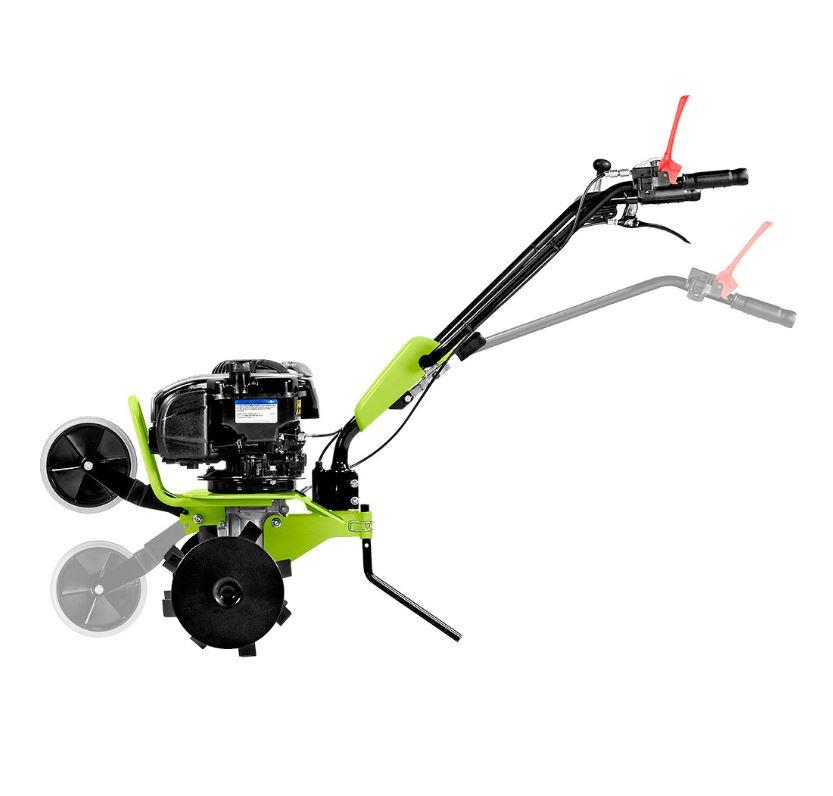

The handlebar is side adjustable without the need to loosen screws or turn knobs. This is facility is necessary to avoid walking on the tilled ground or whilst working close to hedges, fences, or under branches.

Free Delivery Built up and Ready to Use

Technical data

EngineBriggs & Stratton 575EX OHV
Start recoil starter
Supply fuel
Displacement 140 cc, 1 Cylinder
Power 3 HP (2.2 kW)
Air cooled
Dry air filter
Fuel tank capacity0,8 L
Transmissionendless screw in oil bath
 Gearboxsingle speed
 Clutchwith active coupling
Standard rotary tillerwith 4 tines + tillers, working width 52 cmm
 Hoes system diametre28 cm
 Working width area with side disks57 cm. With the optional kit, the tiller can be adjusted at 35 and 80 cm.
 Working depth area without side disks52 cm. With the optional kit, the tiller can be adjusted at 30 and 75 cm.
 Working depth28 cm
 Max. revolutions tiller155 rpm
 HandlebarHeight and side adjustment
 Standard featuresTransfer wheel. Two spurs: one for hard soils, the other one for soft soils
 Safety devicesMachine cut-out on release; mudguards and handlebar according to the law; muffler protection
Weight35 kg

ONLY £781.00
