Grillo

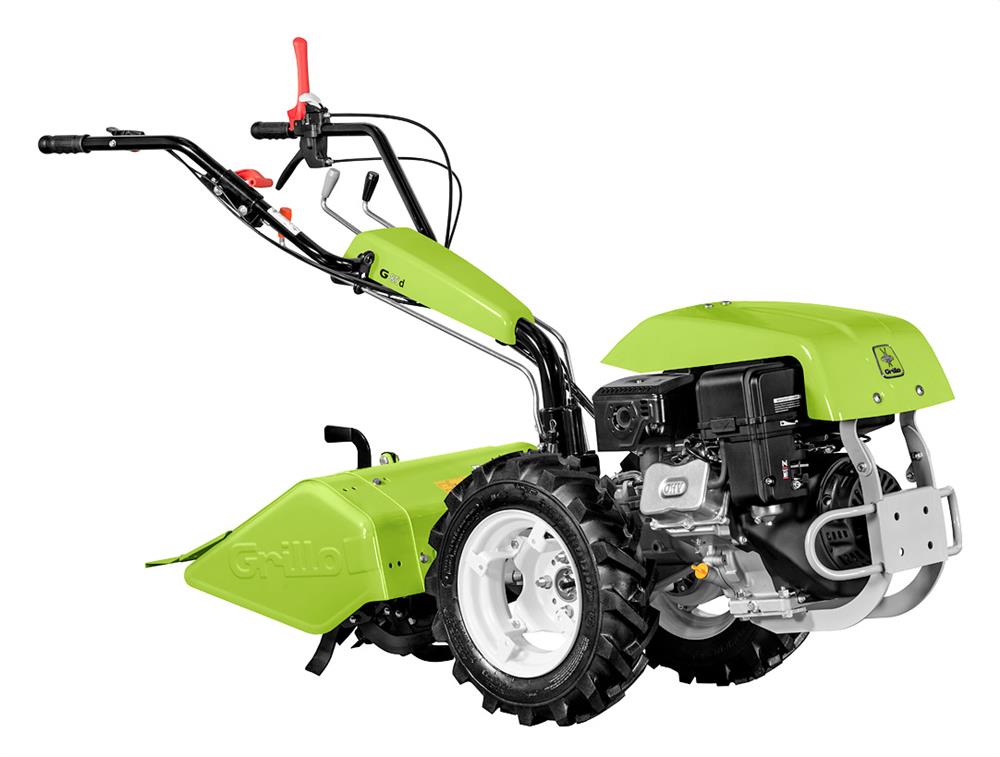

The Grillo G85d is an appropriate walking tractor for working in horticulture, orchards, vegetable plots and for gardening in medium-sized and large areas.

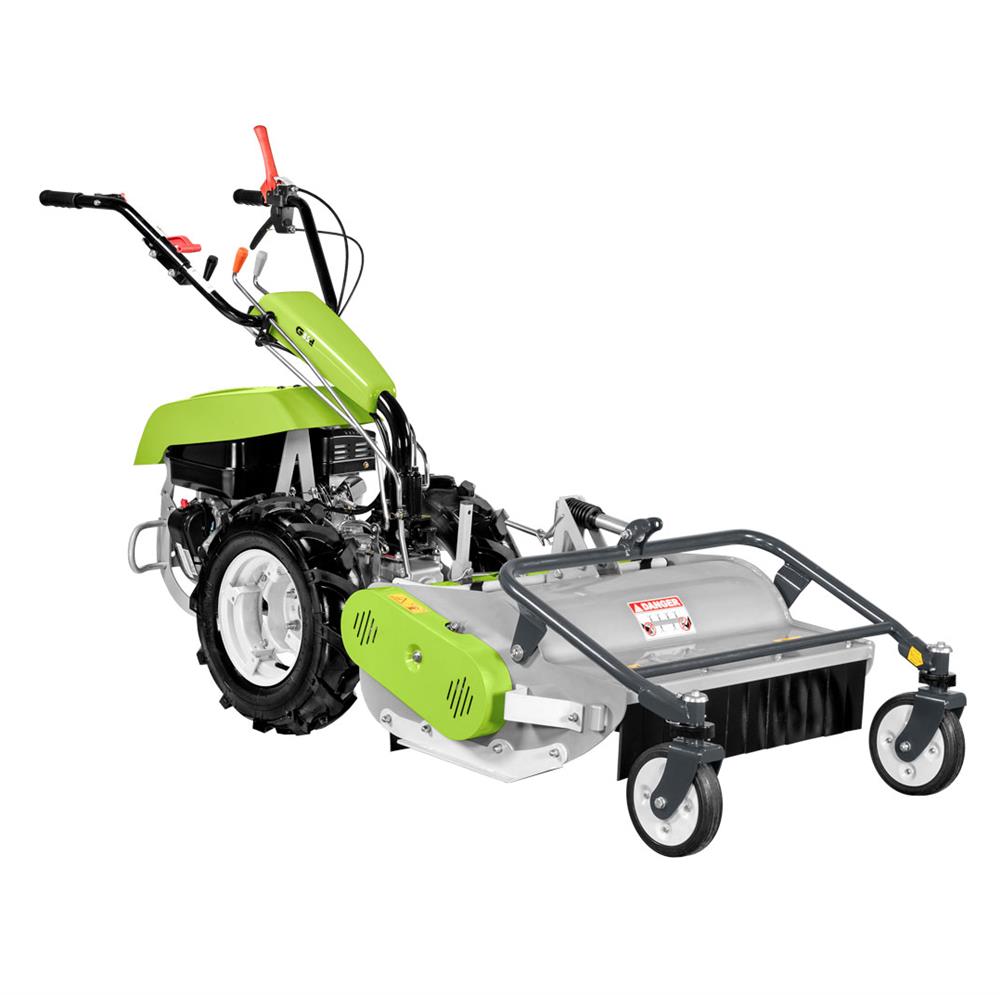

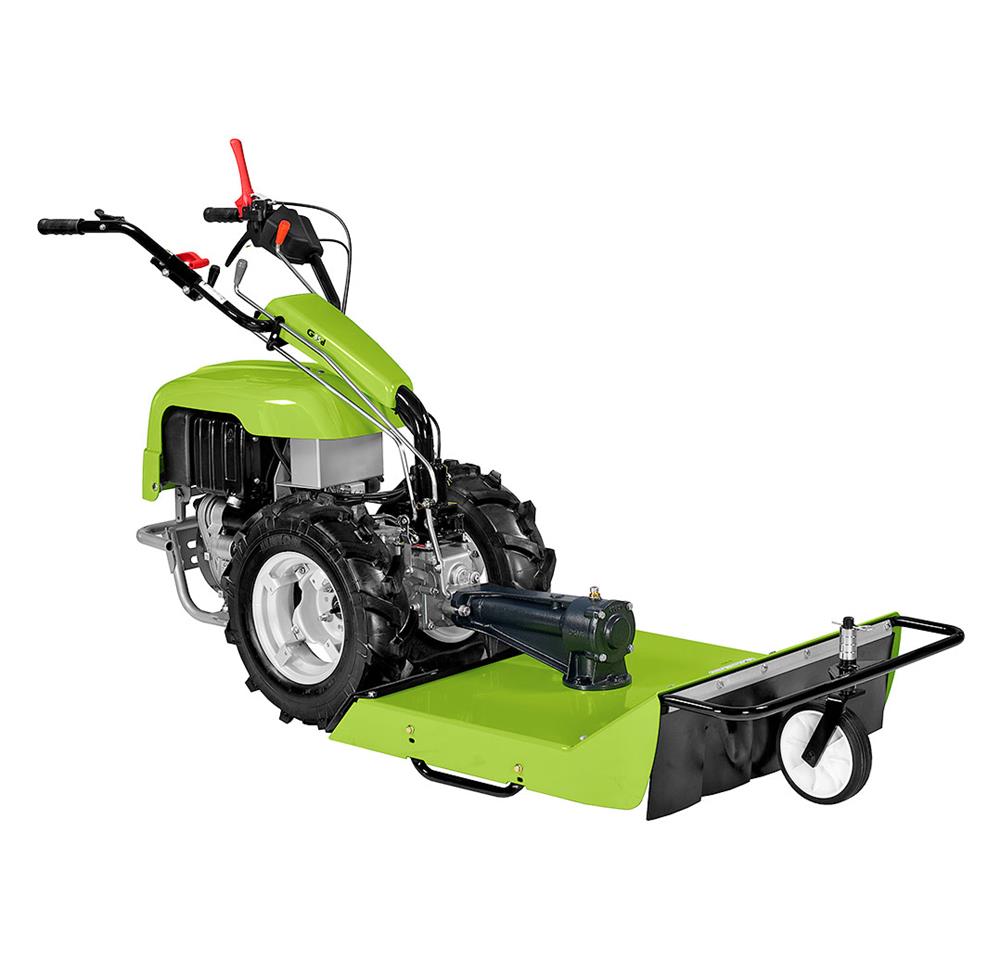

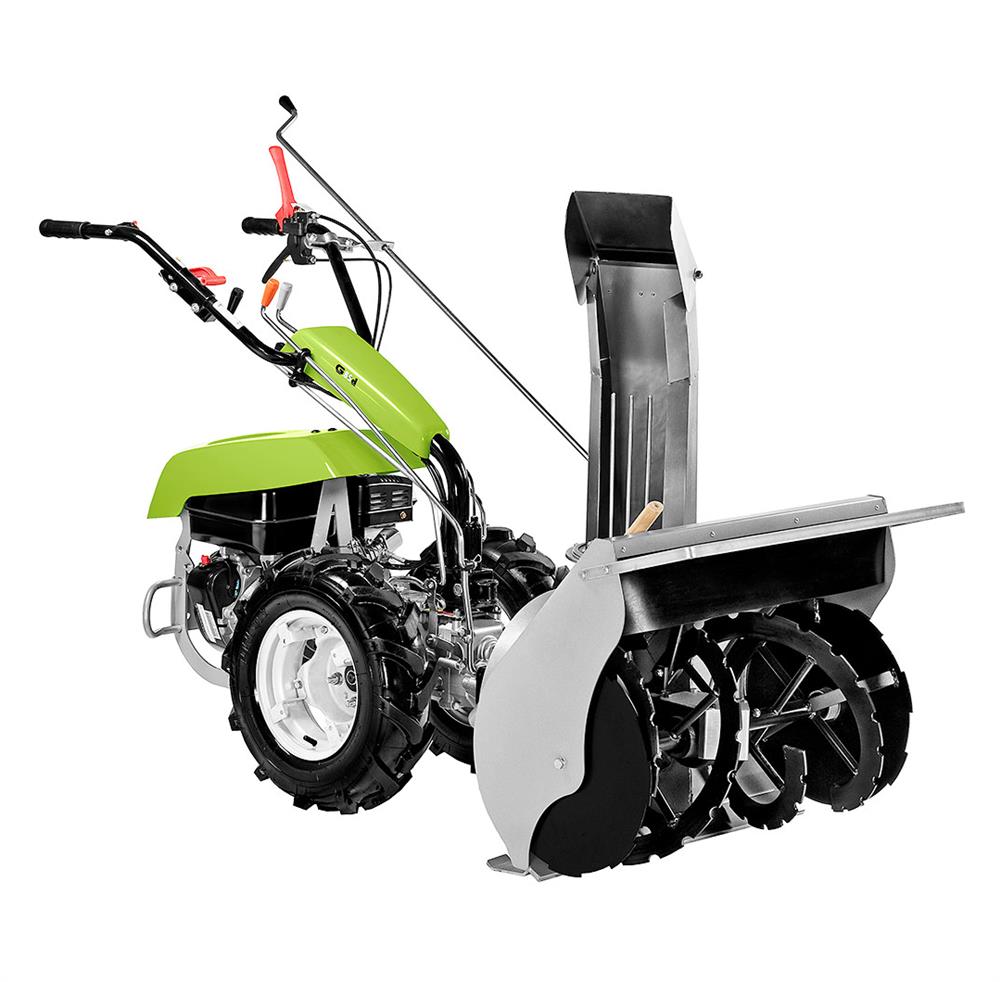

It is fitted with a 4 speed- gearbox with gears in oil-bath, with 2 forward and 2 reverse gears. The differential lock comes as a standard feature. Due to the several safety devices it is fitted with, this walking tractor can be safely used. Thanks to the possibility to reverse the handlebar through 180°, a lot of front and rear-mounted attachments can be connected to the machine, such as: rotary tiller, sickle bar, all purpose flail, snow thrower etc. via either a flanged coupling or through a quick coupling for which no tools are needed.

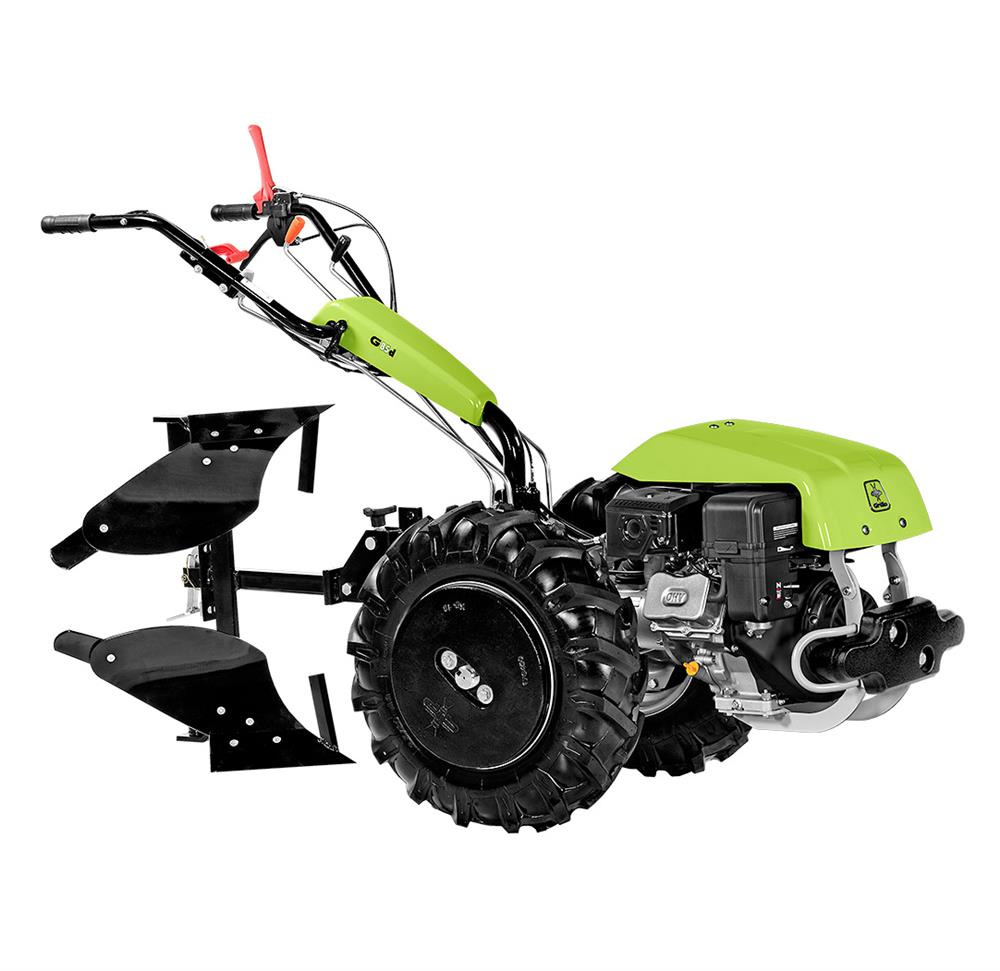

A plough kit is available too and includes larger wheels, adjustable extensions, a 180° turn-wrest plough and wheel weights.
To achieve a greater stability on slopes, it is possible to widen the wheel track up to maximum 25 cm by using fixed or adjustable wheel extensions.

Free Delivery Comes Built up and Ready to Use

Technical Data

EngineKohler KD15 350
Start recoil starter
Supply diesel
Displacement 349 cc, 1 Cylinder
Power 7.5 HP (5.5 kW)
Air cooled
Oil bath air filter
 EngineKohler KD15 350
Start recoil starter and electric with 12V battery
Supply diesel
Displacement 349 cc, 1 Cylinder
Power 7.5 HP (5.5 kW)
Air cooled
Oil bath air filter
 EngineLoncin G300FA
Start recoil starter
Supply fuel
Displacement 302 cc, 1 Cylinder
Power 9.3 HP (6.8 kW)
Air cooled
Dry air filter
 EngineRato R300D
Start recoil starter and electric with 12V battery
Supply fuel
Displacement 301 cc, 1 Cylinder
Power 8.2 HP (6 kW)
Air cooled
Dry air filter
 EngineHonda GX270 OHV
Start recoil starter
Supply fuel
Displacement 270 cc, 1 Cylinder
Power 8.4 HP (6.3 kW)
Air cooled
Oil bath air filter
Fuel tank capacity5.4 L eng. R300D - 6.1 L eng. G300FA - 4.3 L eng. KD15 350 - - 5.3 L. eng. GX270
Transmissionwith oil bath gears
 GearboxWith clutch engagement. The walking tractor version has 2 forward gears + 2 reverse gears. The sickle bar version has 2 forward gears + 2 reverse gears
 Reverse gear unitby lever
 Clutchconic active

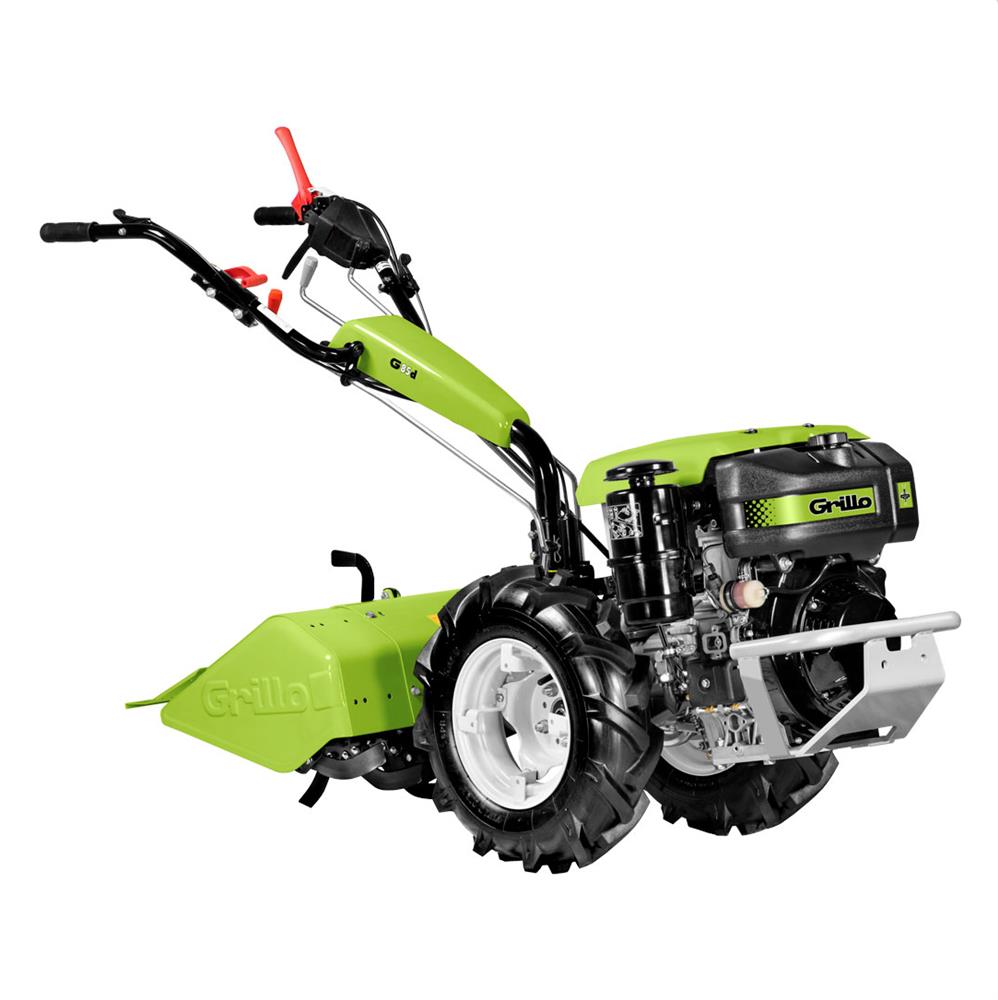

Standard rotary tillerAdjustable rotary tiller with x 4 tines. Working width 580 mm
 Hoes system diametre31,5 cm
 Working widthAdjustable at 370 and 470 mm (680 mm with extension kit cod. 929112)
 Working depth16 cm
 Item no. standard rotary tiller984511
 P.T.O.965 rpm independent of the gearbox. Clockwise rotation for the walking tractor version, anticlockwise rotation for the sickle bar version.
Differential lockingDifferential with locking device by lever on the handlebar
Available tyresPneumatic wheels tractor 4.00-8 (fixed disks), 4.00-10 (adjustable disks) and 5.00-10 (adjustable disks). Pneumatic wheels tractor 5.00-12 (adjustable disks) for plough kit. Wide steel wheels having diameter 40 x 10 cm. Pneumatic wheels garden 20x10.00-8 (extensions cod. 937112 needed)
 SpeedWith 4.00-10 wheels 1st gear 1,2 km/h, 2nd gear 3,0 km/h
 Service brakeBrake drum (kit upon request cod. 978111)
 HandlebarHeight and side adjustment. Fitted on anti-vibration blocks
 Safety devicesActive clutch, reverse speed – PTO cut-out
WeightWeight: standard version 127 kg

Was £3,933.00
NOW £3499.00
