GUARDS AND CONVEYOR

Parts list

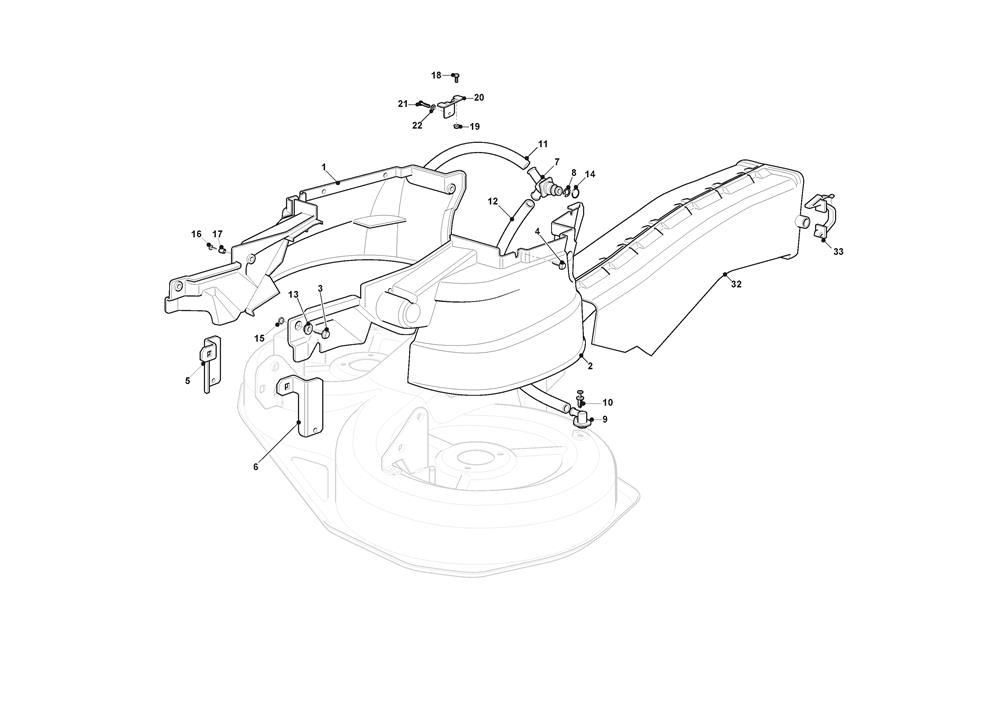

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001325060193/0R/H BELT PROTECTION GUARD£208.89 Add to
002325060195/0L/H BELT PROTECTION GUARD£208.89 Add to
003125943014/0FLANGED SCREW CARTER MOA FIXING£9.03 Add to
004112728535/0SCREW TC SLZ 5.2 x 25£2.06 Add to
005325774381/0RIGHT CLAMP BRACKET£4.66 Add to
006325774383/0LEFT CLAMP BRACKET£4.66 Add to
007325033066/0CUTTING DECK WASHING FITTING£3.69 Add to
008112000970/0CIRCLIP D=12£2.02 Add to
009325033065/0CUTTING DECK WASHING FITTING£2.87 Add to
010112500030/0PLASTIC RIVET 2494 AA01£2.06 Add to
011325869069/0WASHING TUBE L=980£19.54 Add to
012325869068/0WASHING TUBE L=350£9.14 Add to
013325670008/1ANTI-FRICTION WASHER 10.8 x 19 x 0.8£2.06 Add to
014119035000/0O RING 10.77 x 2.62£5.46 Add to
015112604899/0STARLOCK WASHER RPCO 308 D=8£2.06 Add to
016112735120/0FLANGED SELF-TAP SCREW 6.3 x 16£2.06 Add to
017325160039/0SPACER£2.06 Add to
018112788910/0HEX-HEAD SCREW M5 x 16£2.06 Add to
019112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
020325774423/0CENTRAL BRACKET£3.15 Add to
021112735120/0FLANGED SELF-TAP SCREW 6.3 x 16£2.06 Add to
022325160039/0SPACER£2.06 Add to
032382108024/0DISCHARGE CHUTE£18.79 Add to
033325774373/0RELEASE CLAMP£3.41 Add to
