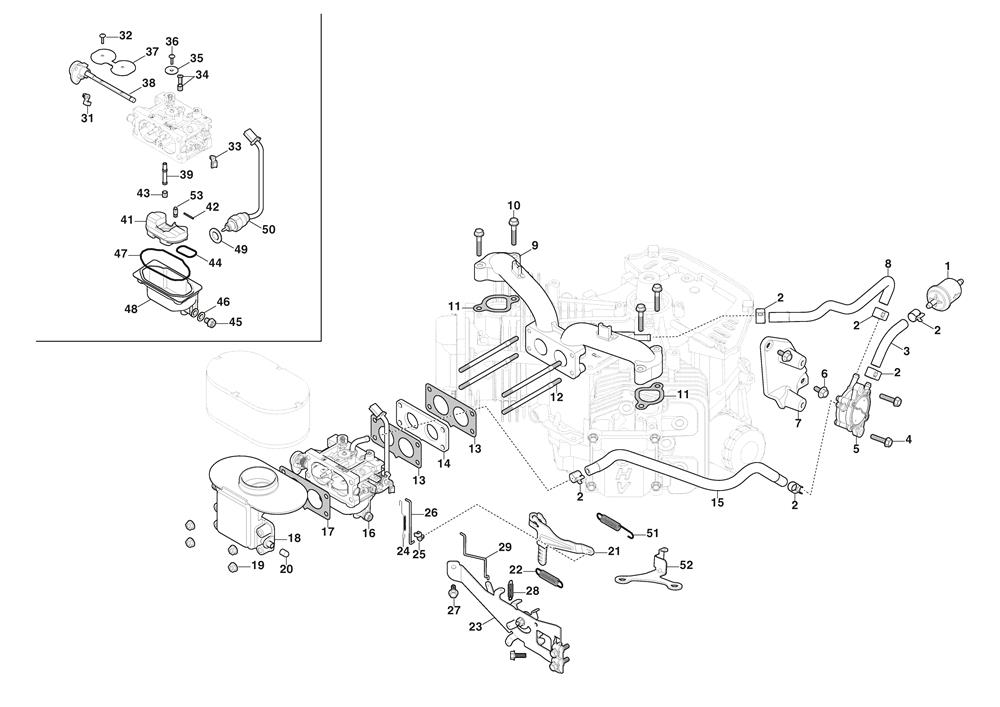

CARBURETOR , FUEL PUMP

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118551572/0FUEL FILTER£10.50 Add to
002118551612/0CLIP, HOSE£3.41 Add to
003118552463/0FUEL TUBE£15.43 Add to
005118551578/0FUEL PUMP£62.97 Add to
006118551535/0HEXAGONAL BOLT£1.87 Add to
007118551579/0BRACKET, FUEL PUMP£14.58 Add to
008118551604/0BREATHER TUBE£6.42 Add to
009118551592/0INTAKE MANIFOLD£88.85 Add to
011118551574/0GASKET, CYLINDER-INTAKE PIPE£2.06 Add to
012118551142/0STUD BOLT£6.69 Add to
013118551576/0GASKET, MANIFOLD-CARBURETOR£3.55 Add to
014118551577/0HEAT ISULATING PAD£3.83 Add to
015118551606/0FUEL TUBE£16.78 Add to
016118551632/0CARBURETOR ASSY TRE586V£135.19 Add to
017118551575/0GASKET, CARBURETOR-AIR FILTER£4.37 Add to
018118551591/0AIR FILTER BASE£31.63 Add to
020118551613/0CAULKING£3.00 Add to
021118551583/1GOVERNOR ARM£17.41 Add to
022118552500/0GOVERNOR SPRING£2.54 Add to
023118552499/0THROTTLE LEVER£26.24 Add to
024118551582/0SPRING, THROTTLE RETURN£2.06 Add to
025118551588/0LOCKER ROD£3.69 Add to
026118551580/0THROTTLE ROD£4.52 Add to
028118551614/0THROTTLE SPRING£2.18 Add to
029118551585/0ROD CHOKE£5.19 Add to
031118551588/0LOCKER ROD£3.69 Add to
032118552286/0SCREW£2.18 Add to
033118552287/0CLIP OF THROTTLE GATE ROD£2.18 Add to
034118552288/0JET,IDLE METERING£2.87 Add to
035118552289/0WASHER,PLAIN£2.18 Add to
036118552290/0SCREW£2.18 Add to
037118552291/0CHOKE COMP£3.00 Add to
038118552292/0SHAFT,CHOKE£5.73 Add to
039118552293/0NOZZLE, MAIN JET£4.52 Add to
041118552294/0FLOAT ASSY£9.68 Add to
042118552295/0PIN FLOAT£2.06 Add to
043118552304/0JET, MAIN METERING£3.00 Add to
044118552297/0O-RING,FUEL BOWL£2.18 Add to
045118552298/0SCREW, OIL CUP DRAIN£2.18 Add to
046118552299/0WASHER£2.18 Add to
047118552300/0O-RING£2.47 Add to
048118552301/0CHAMBER ASSY., FLOAT£9.41 Add to
049118552302/0WASHER,PLAIN£2.06 Add to
050118552303/0VALVE,MAGNETIC£34.35 Add to
051118552501/0THROTTLE RETURN SPRING£2.54 Add to
052118552502/0BRACKET£11.78 Add to
053118552549/0NEEDLE VALVE£5.29 Add to
