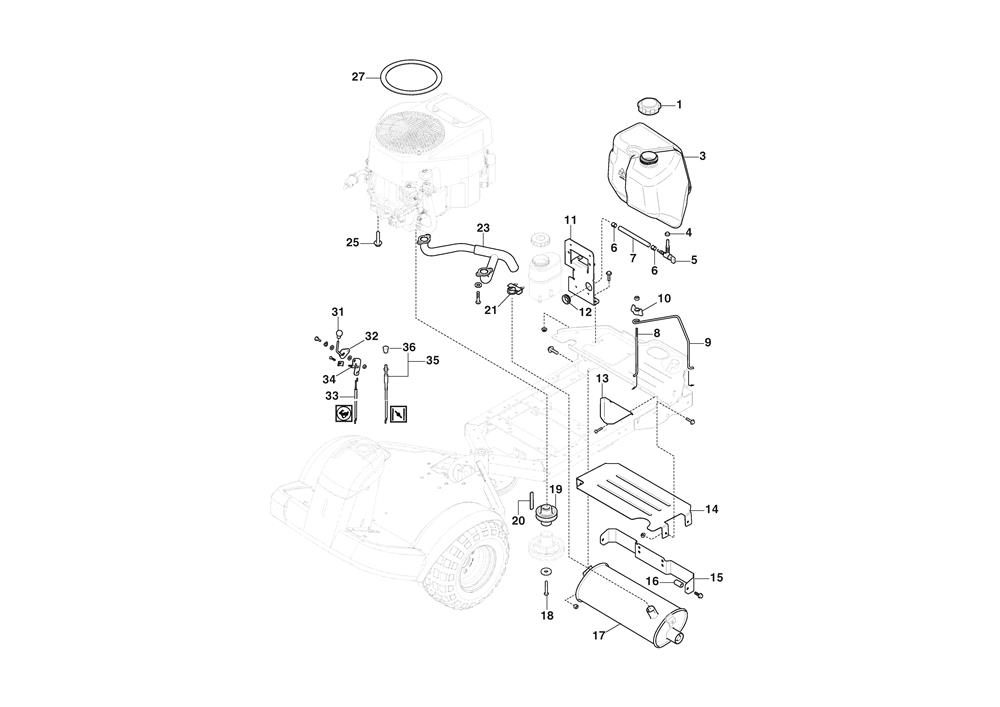

ENGINE - ST 550/600 TWIN

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	125795001/1	FUEL TANK CAP	£8.32	Add to
003	1134-5938-01	FUEL TANK	£135.19	Add to
004	337260156/0	GROMMET	£8.84	Add to
005	118563206/0	FUEL SHUT-OFF VALVE (LONCIN)	£23.69	Add to
006	9578-0023-02	HOSE CLAMP	£5.73	Add to
007	1134-2975-15	FUEL HOSE (L=1400)	£32.99	Add to
008	1134-5996-01	TANK LOOP	£7.10	Add to
009	1134-5942-01	TANK LOOP	£9.54	Add to
010	1134-4481-02	WING NUT	£6.14	Add to
012	1134-3203-01	GROMMET	£5.60	Add to
013	1134-6234-01	HEAT DEFLECTOR	£17.86	Add to
014	1134-6251-01	HEAT DEFLECTOR	£39.80	Add to
015	387602503/0	HEAT PROTECTION GUARD	£54.79	Add to
016	1134-1565-01	SPACER	£14.58	Add to
017	187751507/0	MUFFLER ASSY	£342.17	Add to
018	112737315/0	THREADED SCREW 7/16" x 2½" 20 UNF	£6.27	Add to
019	1134-6139-01	ENGINE BELT PULLEY	£85.54	Add to
020	9600-0251-00	KEY L=3/4"	£4.91	Add to
021	9578-0011-01	TUBE CLAMP	£14.58	Add to
023	387869535/0	EXHAUST PIPE V-TWIN	£160.41	Add to
024	118551272/0	MUFFLER GASKET	£2.87	Add to
025	112735108/1	TELF-FORM SCREW 3/8" X 1¼" UNC	£2.57	Add to
027	125730031/0	INTAKE SEPARATOR STIGA	£32.99	Add to
031	1134-4078-01	KNOB	£5.87	Add to
033	187000205/1	THROTTLE CABLE	£39.56	Add to
034	1134-5464-01	BRACKET	£28.90	Add to
035	137090201/0	CHOKE CONTROL CABLE	£75.78	Add to
036	1134-4338-01	CHOKE CONTROL BUTTON	£15.81	Add to
