ELECTRICAL PARTS

Parts list

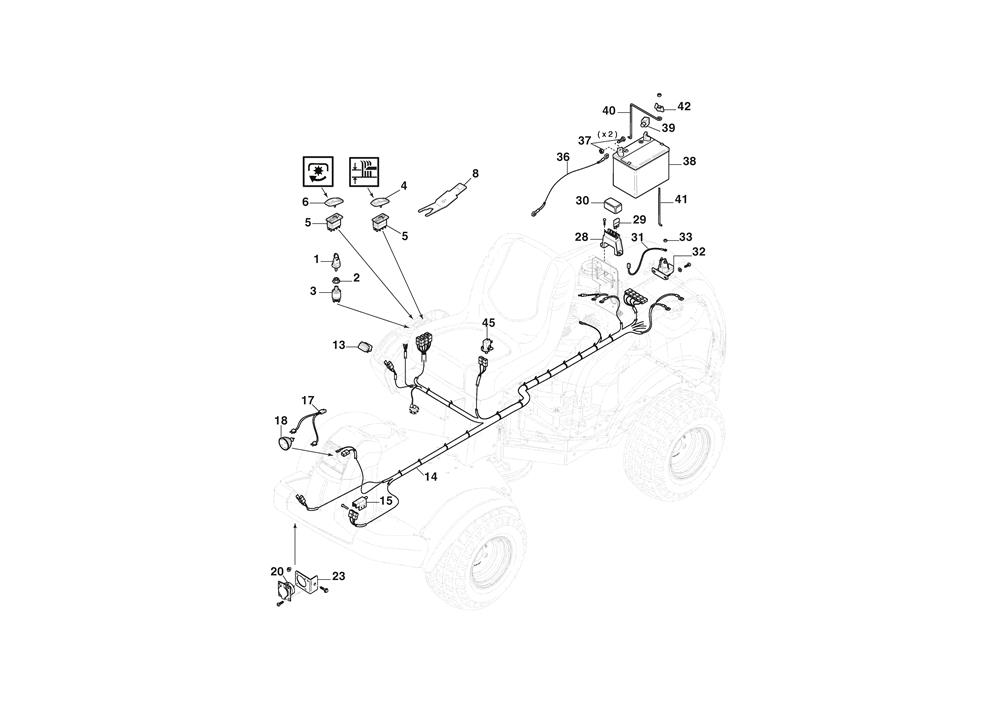

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0021134-4749-01NUT£5.05 Add to
0031134-4093-01IGNITION SWITCH£67.05 Add to
0049400-0280-03SWITCH COVER-HEIGHT ADJUST£18.27 Add to
0059400-0282-01SWITCH C/W DIODE No returns on this item£76.59 Add to
0069400-0343-01SWITCH COVER-PTO£9.28 Add to
0089400-0290-01TOOL£27.27 Add to
013118230002/0HOUR METER£89.58 Add to
014187040333/0WIRING HARNESS [PCH C/W CLUTCH]£321.27 Add to
0151134-3399-02SWITCH£45.26 Add to
0171134-7505-01WIRE HARNESS£129.74 Add to
018118459103/0LED LAMP£23.36 Add to
020387149302/02 POLE FEMALE CONNECTOR£11.33 Add to
023337546755/0PLATE£5.58 Add to
0281134-3491-01FUSE HOLDER£13.90 Add to
0291134-3496-01FUSE 10A£2.66 Add to
0291134-3496-06FUSE 20A£2.06 Add to
0291134-3496-07FUSE 30A£5.05 Add to
0301134-3631-01COVER-FUSE HOLDER£12.96 Add to
0311134-4970-02CABLE£23.45 Add to
032118736112/0SOLENOID£39.80 Add to
0339743-5121-32LOCK NUT 5/16"£1.79 Add to
0361134-0234-02BATTERY CABLE (+)£24.95 Add to
0371134-6113-02BATTERY SCREWS PACK£13.37 Add to
038118120065/0BATTERY YUASA 12V 30AH NO RETURNS ON THIS ITEM£109.58 Add to
0391134-2310-01GUARD CAP (+)£9.28 Add to
0401134-5994-01BATTERY LOOP£9.82 Add to
0411134-5995-01BATTERY LOOP£6.55 Add to
0421134-4481-02WING NUT£6.14 Add to
0451134-3156-01SEAT SWITCH [BLACK]£45.26 Add to
